UPC: 8603810042097
Description

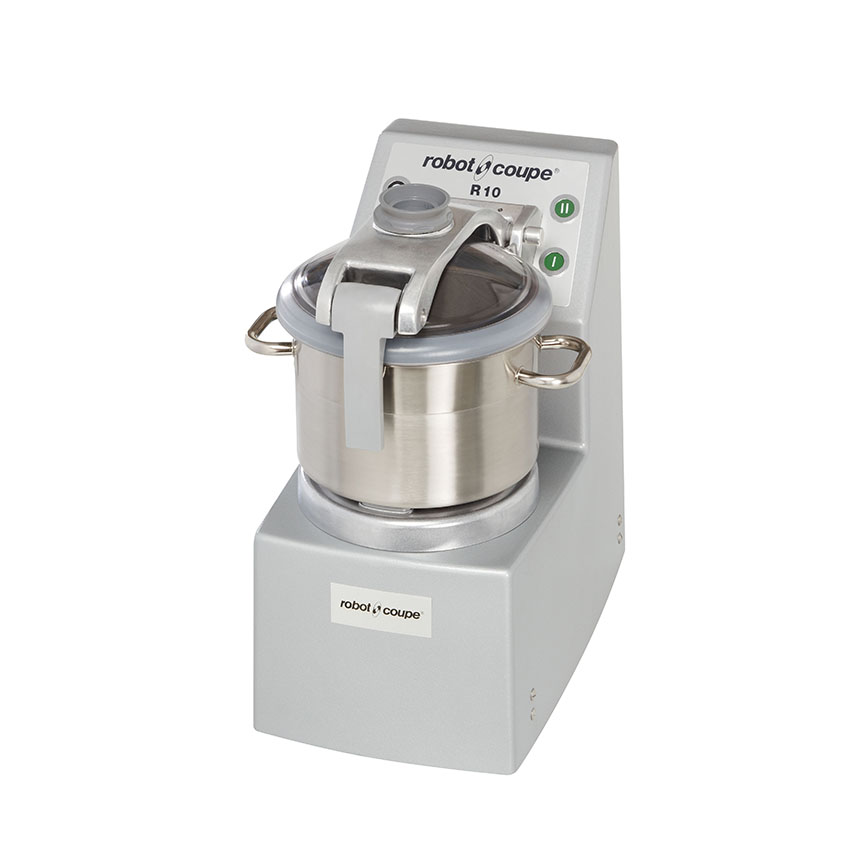

10 quart bowl designed for vertical cutting and mixing: puree, mix, chop, blend, mix and knead dough.
- Power: 4.5 HP—Three phase.
- 2 speed: 1725/3450 rpm.
- On/off and pulse switch.
- Induction motor. Magnetic safety system and motor brake.
- Delivered with:
- 10 Qt. stainless steel cutter bowl with handle and see-thru lid.
- 3 stainless steel smooth edge “S” blades.
- Optional fine serrated and coarse serrated blades available.
- Dimensions (H×L×W) : 22 3/8" × 26 5/16" × 14 1/2"
- Approx. shipping weight: 150 lbs
- Approx. carton size: 32" × 29" × 21" Cube 11.27
- ETL Electrical and Sanitation listed.
- Minimum Branch Circuit Protection Required: 20 AMP
- NEMA# L15-20P
Options for the R10
| Ref No. | Description |
| R1031 | 10 Qt. Stainless Steel Bowl only |
| R1037A | Lid Assembly with seal |
| R1070B | 3 Blade Smooth Edge Stainless Steel Adjustable Blade Assembly |
| R1070C | 3 Blade Serrated Edge Stainless Steel Adjustable Blade Assembly |
| R1070G | 3 Blade Unsharpened Edge Stainless Steel Adjustable Blade Assembly |
| R199 | Robo-Cart |
| R8U065 | 3.5 Qt. Stainless Steel Mini Bowl |
| R8U066 | 2 Blade Stainless Steel Smooth Edge “S” Blade Assembly for Mini Bowl |
| R8U071 | Machine Stand: (HxLxW) 25 1/4" x 33 1/4" x 21 3/16" |
| R8U090 | 3.5 Qt. Stainless Steel Mini Bowl with complete Stainless Steel Smooth “S” blade assembly |
Specifications
| Dimensions and Weight | |
|---|---|
| Exterior Width | 13-9/16" |
| Exterior Depth | 22-1/16" |
| Exterior Height | 26" |
| Bowl Capacity | 10 qt. |
| Features | |
| Type | Batch Bowl Processor |
| No. of Discs / Blades Included | 1 |
| Speed Controls | 2 |
| Electrical | |
| Power Type | Electric |
| Voltage | 208-240 |
| Amps | 9.0 - 12.5 |
| Phase | 3 |
| Hertz | 60 |
| RPM | 3450 |
| Horsepower | 4 1/2 |
| Certificate Label | |
| UL Listed | Yes |
