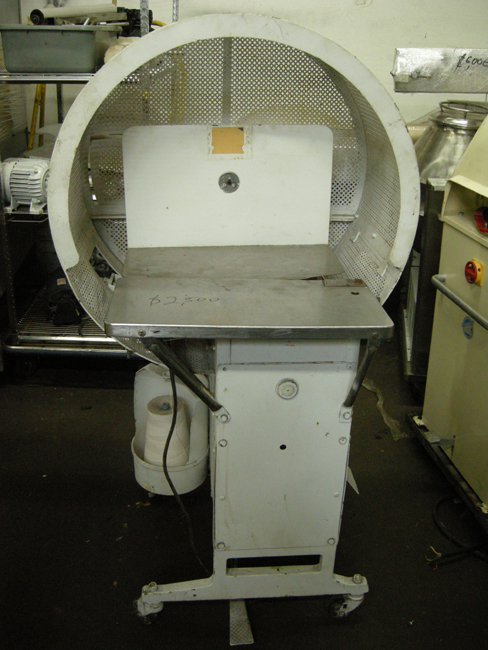

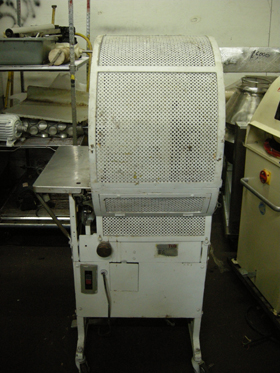

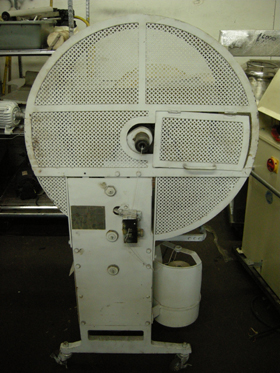

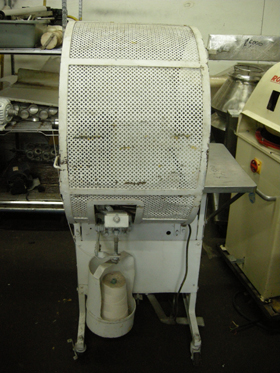

Tom Tying Machine TM-45 Used
Approx 15 Years Old
As Is
Saves time,material and labor cost
Shortens working hours.
Easy to operate,even by inexperienced person.
Automatic adjustment for various size packages.
Safe.trouble-free operation.
Improves efficiency.
Versatile and compact.
Uses many kinds of tying materials.
1.Any bundle is put in a position for being tied.
2.Step on the pedal.
The bundle is automatically tied with a string,and tightend with a knot . This is done in about 2 seconds.
1.Polyenthylene tape---for light package, for inside packing
2.Polypropylene twine---for heavy package ,for outside packing
3.Cotton cord---for general use
Synthetic cords,cotton strings and threads may be combined,and these can be single wrap,double wrap,or crosswise.
Good For Use In A Matzoh Bakery
| TOM machines are now in use in the following business. 1.Goverment Office 2.News Agencies 3.Publishing Houses 4.Bookbinderies 5.Paperboard Makers 6.Department Stores 7.Plants and Manufactures 8.Confectionery Shops 9.Lumber Business 10.Chemical Business 11.Post Offices 12.Many Other Establishments |
TOM machines are being used for packaging 1.Printed Matters 2.Newspapers 3.Magazines 4.Paperboards 5.Clothings 6.Foodstuffs 7.Chemicals 8.Books 9.Mails 10.Lumbers 11.Paper Products 12.Many Others |
| Model | TM45 |
|---|---|
| Max.tie Size | Rectangular .450×350 17 3/4" x 13 3/4" Square.400×400 15 3/4" x 15 3/4" |
| Min.tie Size | 50×50 1 1/2" x 1 1/2" |
| Model | TM -45 |
|---|---|
| Height | 57" |
| Width | Opening 26 1/2" |
| Length | Total 28" |
| Loose Table Depth | 10" x 20 3/4" |
| Total Table length | 19 3/4' x 20 3/4" |
| Weight | 130 |
| Ordinary Motor (Single phase) |
1/3I-P 250W |
 |
 |
 |
 |
 |
