MFR: AH/1E-40
Description

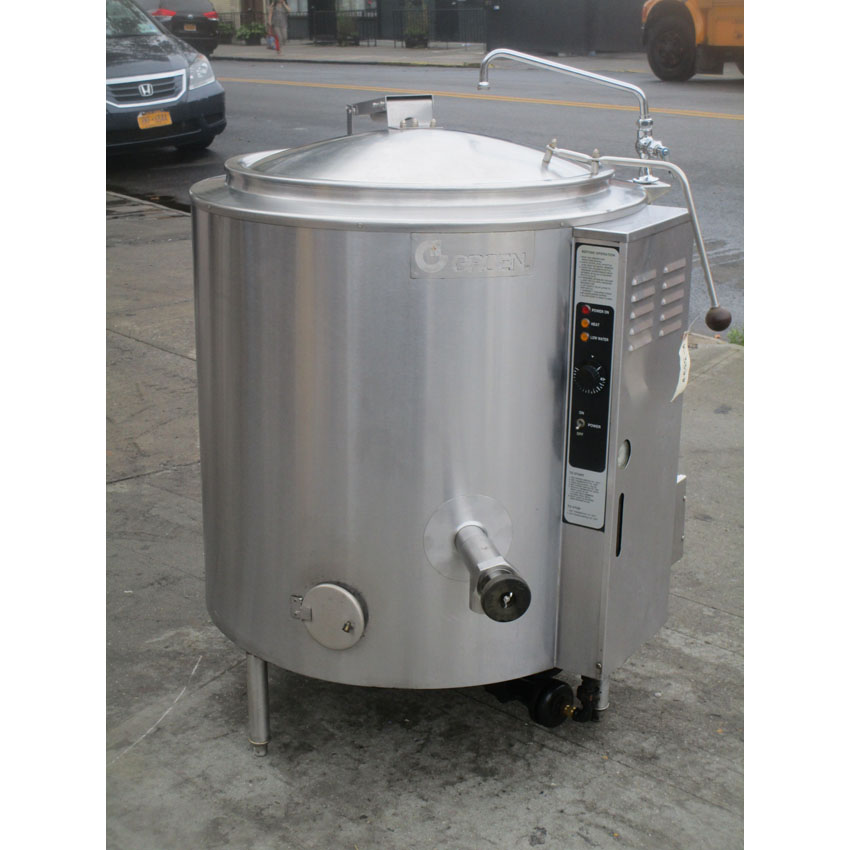

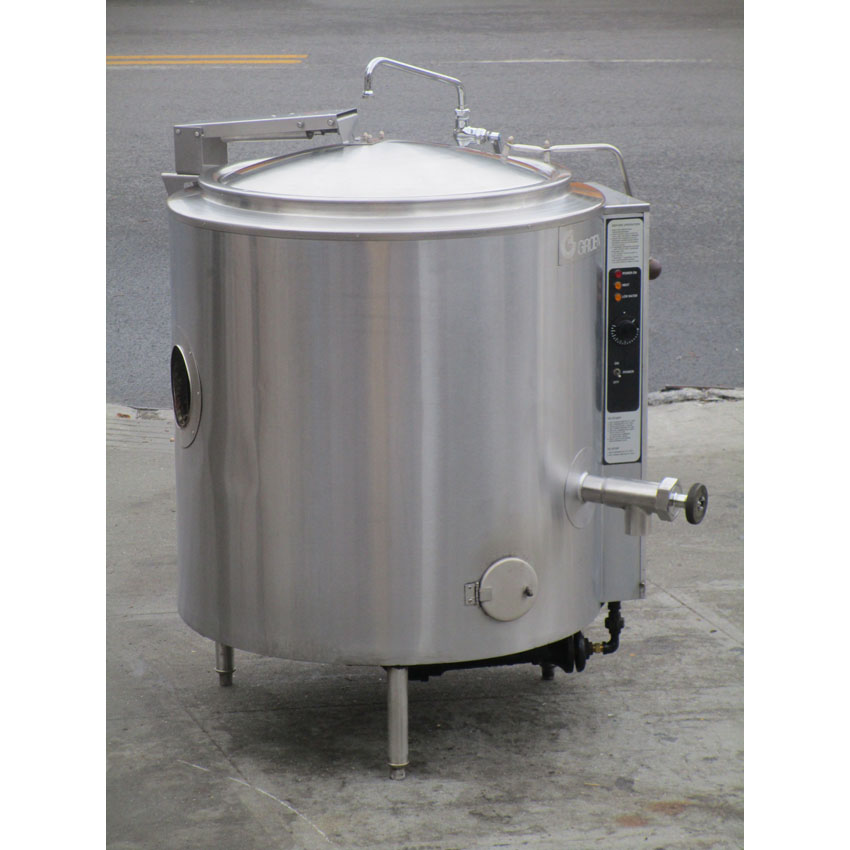

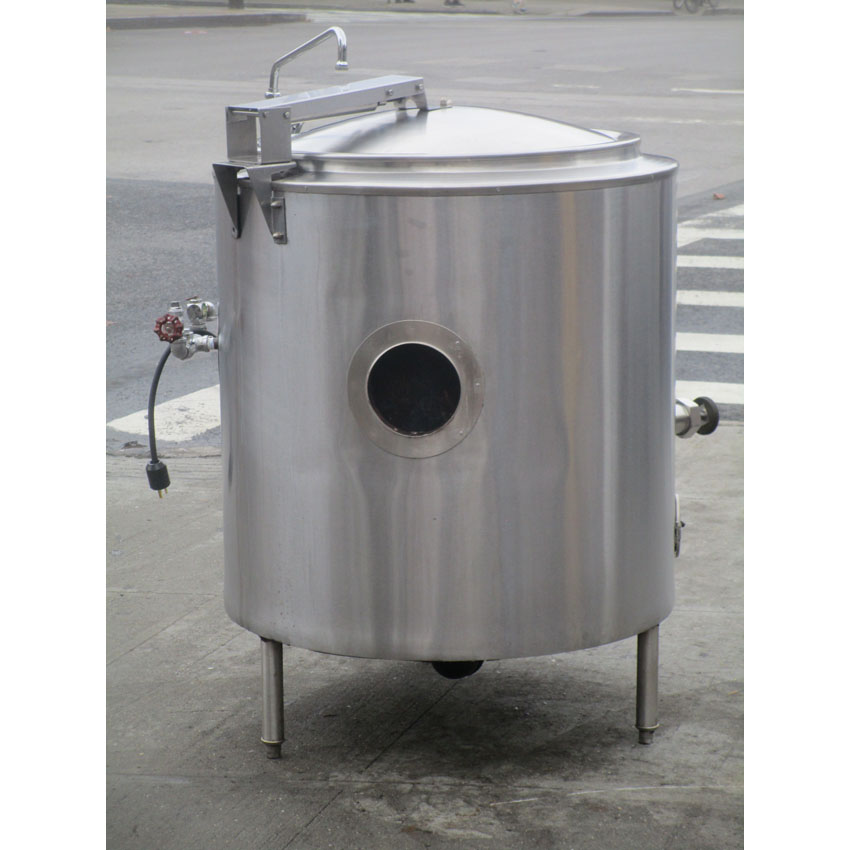

Groen AH/1E-40 Steam Jacketed Gas Floor Kettle, Excellent Condition
Tested by in-house technicians

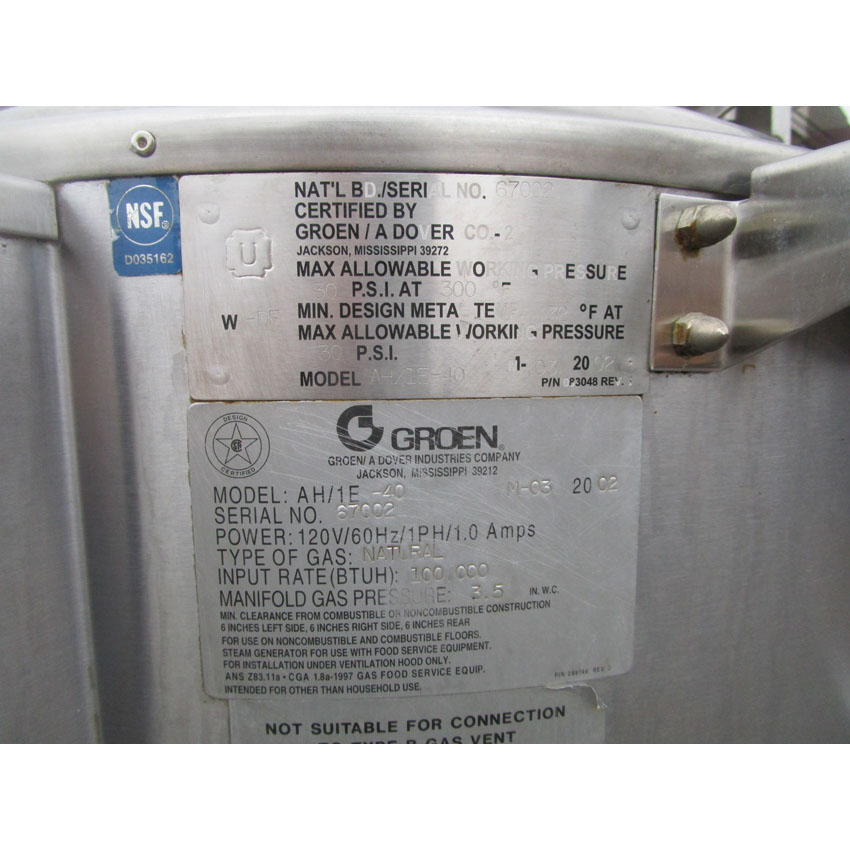

| Model | AH/1E-40 |
| Serial No. | 67002 |
| Voltage | 120 |
| Hertz | 60 |
| Phase | 1 |
| Amps | 1.0 |
| Gas Type | Natural |
| Input Rate BTU | 100,000 |
| Manifold Gas Pressure | 3.5 |
Description
Kettle shall be a Groen Model AH/1 (specify 20, 40, 60, 80 or 100 gallons) stainless steel, self-contained, steam jacketed kettle operating from gas heated steam source contained within unit per Bulletin 141047 as follows:
Construction
Kettle interior shall be of type 316 stainless steel, with solid one-piece construction. All exposed surfaces shall be stainless steel. All controls shall be contained within front control enclosure. Kettle body is sheathed in stainless steel and insulated with fiber bat insulation. Unit provided with three adjustable legs for leveling. Faucet mounting bracket is standard.
Finish
Interior of kettle shall be polished to a 180 emery grit finish. Exterior shall be finished to a uniform #3 satin finish ensuring maximum ease in cleaning and maintaining appearance.
ASME. Code, CSA (Formerly AGA) Design Certified, CRN Registered
Unit shall be ASME shop inspected, stamped and registered with the National Board for operation up to a maximum working pressure of 30 PSI. Unit shall be Design Certified by the Canadian Standard Association. Unit shall be registered in Canada with a CRN number.
Drawoff Valve
Unit shall have a 2" sanitary tangent drawoff which is made of 316 stainless steel. Valve has durable insulated handle, rubber compression sealing disk and is easy to disassemble without tools. The drain outlet shall be equipped with a removable 1/4 perforated stainless steel strainer.

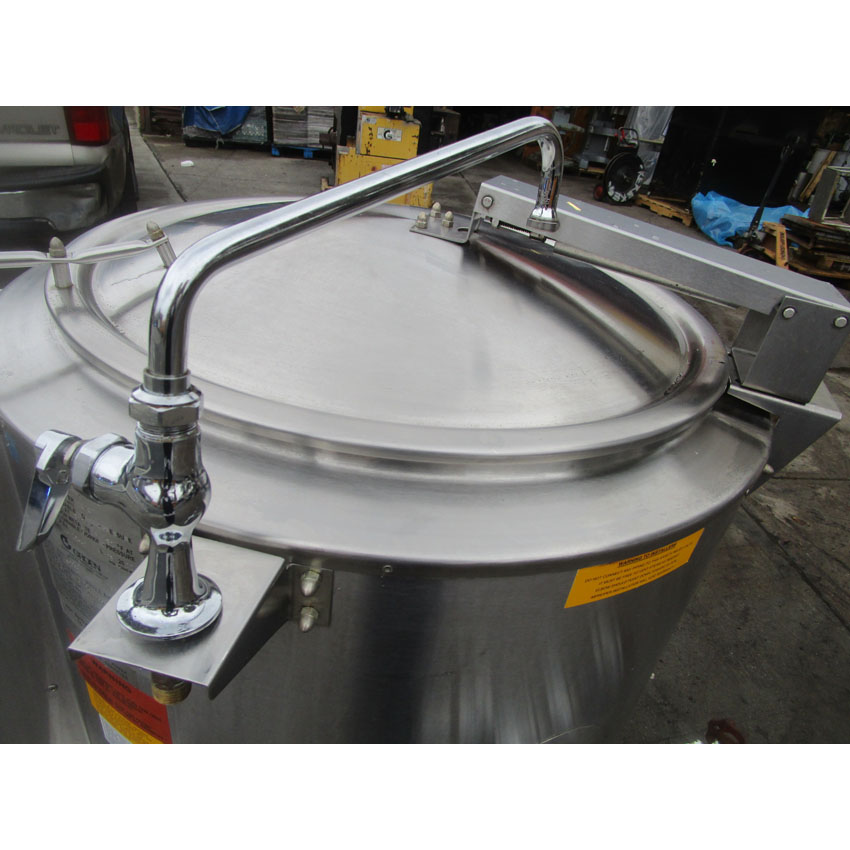

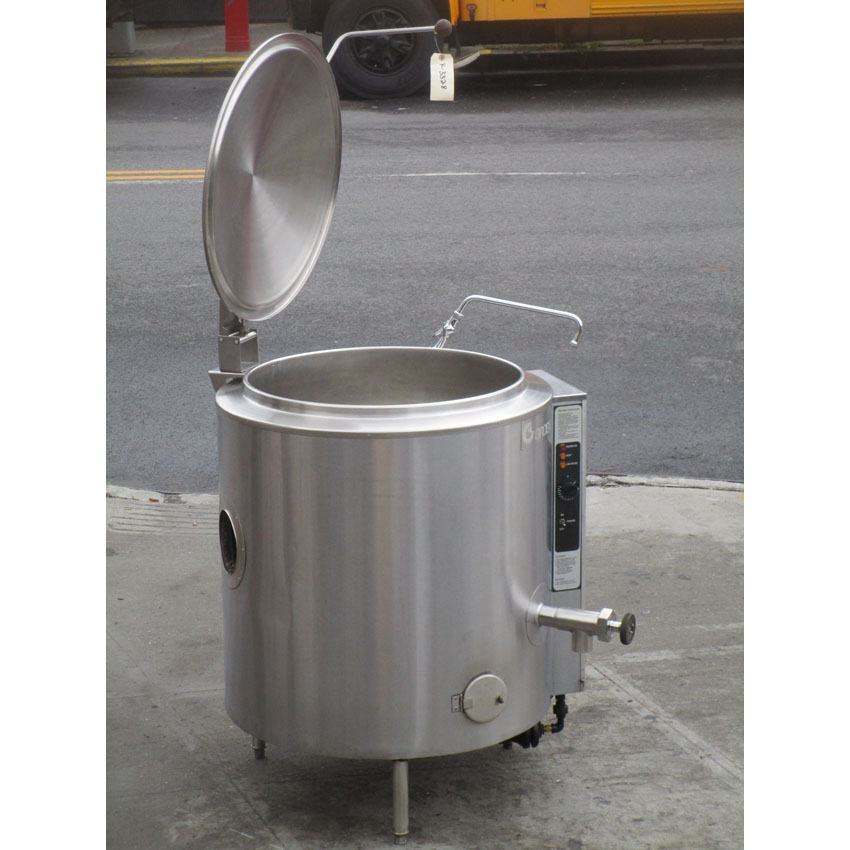

Cover
Cover furnished on 20 gallon units shall be hinged, dome one-piece unit. Units of 40 to 100 gallon capacity shall be furnished with No. 51 counterbalanced actuator designed to maintain the cover in an open or closed position.
Warehouse tag # k-3328
