Description
Description:

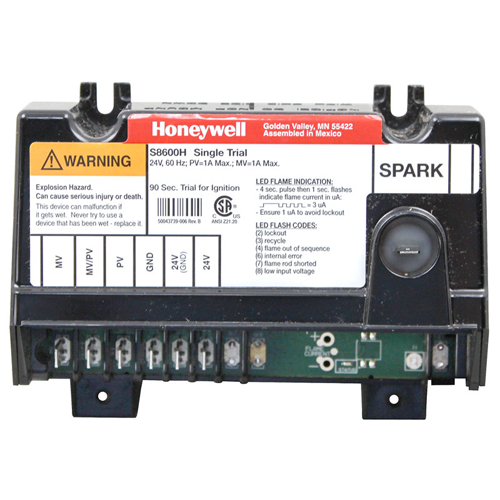

IGNITION CONTROL MODULE 24V, F429, CA-145, # 441283
HONEYWELL S8600H3002, (F429 SAME AS F424)
HONEYWELL IGNITION BOX,, 1 MV, 2 MV/PV, 3 PV,
4 GND(BURNER), 5 24V(GND), 6 24V, 9 SPARK, 90 SEC
OLD/STYLE GRAY SPARK BOX NLA FROM HONEYWELL
NEW/STYLE BLACK BOX W/ SPARK CONNECTION ON TOP
GROEN KETTLE, MARSHALL AIR BROILER.
FOR VULCAN HART:
NAT/LP PILOT, H501, # 51-1467
IGNITION CABLE, VUL419359 (NON-STOCK)
VULCAN MODEL 1GR45M, 1GR65M, 1GR85M, 1GRC35, 1GRC45,
1GRC65,1GRD45, 1GRD65, 1GRS35, 1GRS45, 1GRS65, EF3, EF4,
EF5, G40TB, GR35,GR35F, GR45, GR45F, GR65, GR65F, GR85,
GR85F, GRC35F,GRC45F, GRC65F, GRC85F, GRD35F, GRD45F,
GRD65F, GRD85F,GRS35F, GRS45F, GRS65F, GRS85F
GROEN KETTLE MODEL:HONEYWELL S8600H3002, (F429 SAME AS F424)
HONEYWELL IGNITION BOX,, 1 MV, 2 MV/PV, 3 PV,
4 GND(BURNER), 5 24V(GND), 6 24V, 9 SPARK, 90 SEC
OLD/STYLE GRAY SPARK BOX NLA FROM HONEYWELL
NEW/STYLE BLACK BOX W/ SPARK CONNECTION ON TOP
GROEN KETTLE, MARSHALL AIR BROILER.
FOR VULCAN HART:
NAT/LP PILOT, H501, # 51-1467
IGNITION CABLE, VUL419359 (NON-STOCK)
VULCAN MODEL 1GR45M, 1GR65M, 1GR85M, 1GRC35, 1GRC45,
1GRC65,1GRD45, 1GRD65, 1GRS35, 1GRS45, 1GRS65, EF3, EF4,
EF5, G40TB, GR35,GR35F, GR45, GR45F, GR65, GR65F, GR85,
GR85F, GRC35F,GRC45F, GRC65F, GRC85F, GRD35F, GRD45F,
GRD65F, GRD85F,GRS35F, GRS45F, GRS65F, GRS85F
AH/1E-100, AH/1E-20, AH/1E-40, AH/1E-60,
AH/1E-80, AHS-40, DH/DHT-20, DH/DHT-40, DH/DHT-60,
DH/DHT-80, DH/INA/2-100, DHS-40, DHS/T-40, HFP/2, HFP/2E,
HFP/2E-2, HFP/2E-3, HFP/2E-4, HY-5G, NGB/3, NGB/3/E,
NHFP/2E, TDH-40, TDHC-20, TDHC-40
OVEN MODEL CC10-G, CC20-G, BPMG-40
Replaces the following Manufacturer's Products
OEM Numbers are used for reference only.
|
OEM Names |
OEM # |
| CLEVELAND | 109967 |
| GROEN | Z085153 |
| VULCAN HART | 00-857207-00001 |
| GROEN | 085153 |
| LEGION | 404007 |
| MARSHALL AIR | 501614 |
| SOUTHBEND | 1174813 |
| VULCAN HART | 00-417980-00001 |
| VULCAN HART | 00-426225-00001 |
| VULCAN HART | 00-821078 |
| VULCAN HART | 417980-00001 |
| VULCAN HART | 417980-1 |
| VULCAN HART | 426225-00001 |
| VULCAN HART | 426225-1 |
| VULCAN HART | 821078 |
| VULCAN HART | 857207-00001 |
| VULCAN HART | 857207-1 |
Specifications
| Features | |
|---|---|
| Type | Ignition Controls / Modules |
