Description

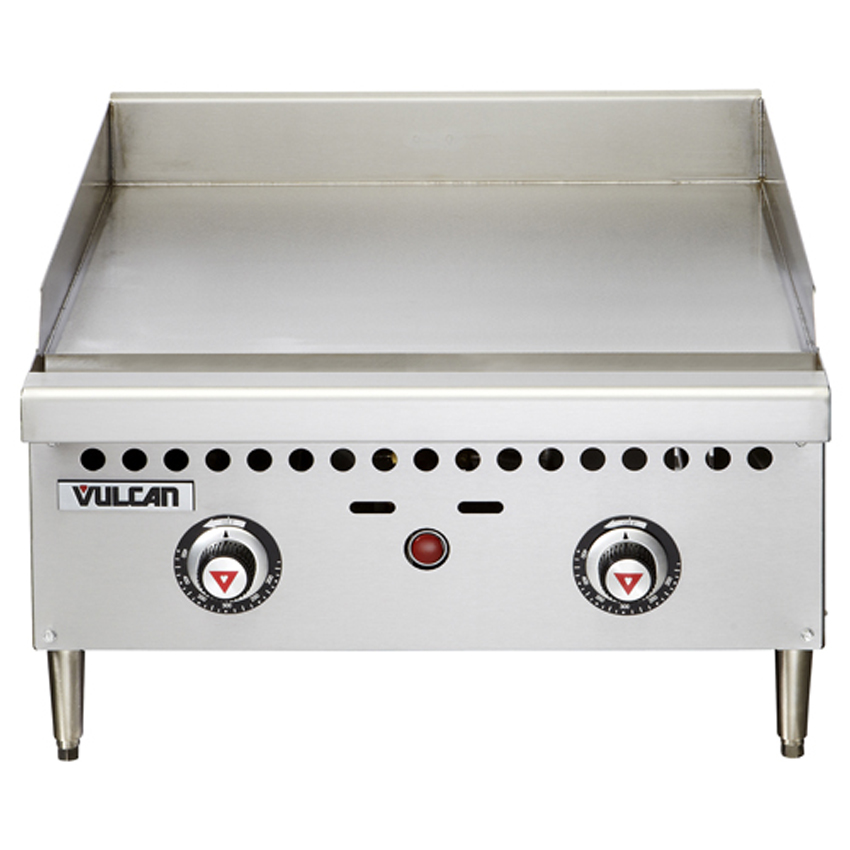

Vulcan VCRG24-T VCRG-T Series Restaurant Gas - 24" W x 20-1/2" D Griddle Plate
With a class-leading 1" thick, top-seam welded griddle plate, the VCRG-T model griddle delivers increased production capacity, faster recovery and superior temperature control. The VCRG-T design includes an embedded snap-action control thermostat and full supervised pilot and burner safety system.
- Gas Griddle
- Counter model
- 1" thick polished steel griddle plate
- Top seam welded
- Embedded mechanical snap action thermostat every 12"
- Millivolt pilot safety
- Manual ignition
- Low profile
- Stainless steel front, sides, front top ledge
- Front grease trough
- Grease can
- Heavy gauge 4" back & tapered side splashes
- 4" adjustable legs
- CSA, NSF
- 24" W x 20-1/2" D Griddle Plate
Specifications
| Dimensions and Weight | |
|---|---|
| Gas Inlet Size | 3/4" |
| Exterior Width | 24" |
| Exterior Depth | 27" |
| Exterior Height | 16" |
| Cooking Surface Depth | 20-1/2" |
| Cooking Surface Width | 24" |
| Work Surface Height | 12-1/2" |
| Features | |
| Type | Griddle |
| No. of Burners | 2 |
| Burner BTU | 25,000 |
| Total BTU/HR | 50,000 |
| Burner Style | U-Shaped |
| Control | Thermostatic |
| Cooking Surface Material | Polished Steel |
| No. of Controls | 2 |
| Temperature Range | 200 - 450° F |
| Usage | Heavy Duty |
| Certificate Label | |
| NSF Listed | Yes |
