Drop In Water Station WSB-19 NEW
Item Description

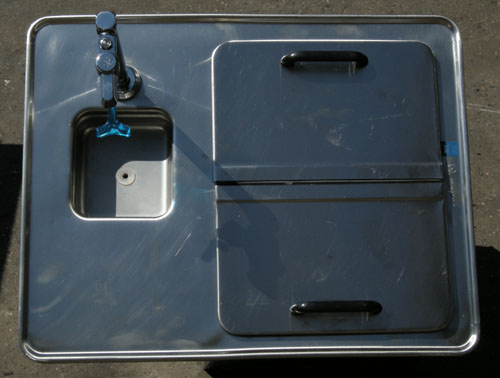

The WSB series water station and ice server enables you to provide
ice water service to your serving counter, quickly and easily. A
single spigot glass filler is mounted over a drain trough with
removable anti-splash grate. A large capacity ice chest is adjacent,
provided with a removable hinged lid. It’s everything you
need for ice water service. The ice chest is fully insulated and the
entire top is provided with a factory applied gasket so that it can be
installed in the finest wood fixtures without marring the counter top.
The unit is constructed of stainless steel and is provided with
separate drains for both the trough and the ice chest.
Specifications
TOP: Constructed of 18 gauge, type 304 stainless steel, die
stamped with a raised perimeter bead. There shall be a solid
vinyl gasket under the beaded edge to form a seal to the counter
top. A coved pan insert is secured to the top, and is equipped with
a 1/4" IPS drain and a removable anti-splash grate. Mounted above
the drain pan is a chrome plated, brass glass filler with a volume
regulator and stream director.
ICE CHEST: The inner liner shall be 22 gauge, type 304 stainless
steel. All corners are coved with a minimum 1/4" radius. A 1" dia.
threaded drain fitting is provided.
INSULATION: The pan is fully insulated with high density
polystyrene, 1" thick on all sides, 1-1/2" thick on the bottom and
enclosed with a 24 gauge galvanized steel outer liner.
LID: The ice chest is provided with a double pan, insulated lid with
a rubber, self-insulating hinge. The entire lid is removable.
FEATURES:
Chrome plated, lever action glass filler
Large capacity ice chest - fully insulated to hold ice longer
Factory applied gasket - makes installation
a snap and seals units to the counter top, thus eliminating seepage
Sanitary - provided with a drain trough, with anti-splash grate.
NSF certified
