Description
Description:

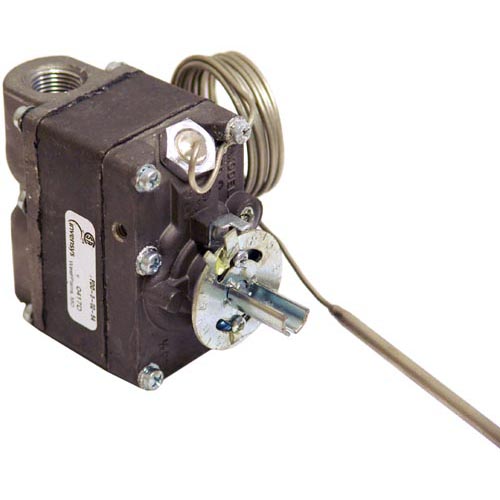

[ FDO-1 ] [ TEMP 150-550 ] [ BULB 3/16" X 14-3/4" ]
[ CAP 54" ] [ GAS IN/OUT 3/8" FPT (SIDE) F & E ]
[ DIAL # 22-1009 150-550 ] ["D" MOUNT .290"]
[POSITION 4 WAY ]
[ VULCAN DIAL # 22-1080 150-500 ][MOUNT .290"] [ FLAT
DOWN ], BLACK W/WHITE PRINT.
IMPERIAL OVEN
SERIES: IHR.
MONTAGUE MODEL VECTAIRE
VULCAN BROILER GHCB40
OVEN HM60, G130A (AFTER STYLE #1060A)
SERIES: 1700, 7000, 7800, GH, GHM.
SERIES: H (FORMERLY 7800, SG7800).
DIAL # 22-1009 150-550[ CAP 54" ] [ GAS IN/OUT 3/8" FPT (SIDE) F & E ]
[ DIAL # 22-1009 150-550 ] ["D" MOUNT .290"]
[POSITION 4 WAY ]
[ VULCAN DIAL # 22-1080 150-500 ][MOUNT .290"] [ FLAT
DOWN ], BLACK W/WHITE PRINT.
IMPERIAL OVEN
SERIES: IHR.
MONTAGUE MODEL VECTAIRE
VULCAN BROILER GHCB40
OVEN HM60, G130A (AFTER STYLE #1060A)
SERIES: 1700, 7000, 7800, GH, GHM.
SERIES: H (FORMERLY 7800, SG7800).
MONTAGUE MODELS
115,115A,115Z,2-115,2-115A,2-115B,2-115C,2-115Z,2-70,2-70A,2
-70B,2-70C,2-70Z,70,70A,70Z,R2-85,R2-85A,R85,R85A,SE115,SE2-
115,SE2-70,SE70,SL115AH,SL115AP,SL2-115AH,SL2-115AP,SL2-70AH
,SL2-70AP,SL70AH,SL70AP
CAPILLARY CLAMP: # 26-3078 SNAP-IN,
CAPILLARY CLAMP: # 26-1935 CLIP-ON
BULB CLAMPS, PKG/6, # 26-1542
CAPILLARY INSULATION PER FOOT: # 85-1161
ROBERTSHAW ACROFLEX INSULATION SLEEVING
FITS BULBS UP TO 3/8" DIAMETER.
Replaces the following Manufacturer's Products
OEM Numbers are used for reference only.
|
OEM Names |
OEM # |
| IMPERIAL | 1153 |
| VULCAN HART | 00-407522-00001 |
| VULCAN HART | 107522-1 |
| VULCAN HART | 407522-00001 |
| VULCAN HART | 407522-1 |
Specifications
| Features | |
|---|---|
| Capillary | 54" |
| Temperature Range | 150 - 550° F |
| Electrical | |
| Thermostat Type | Hot Side Gas Thermostat |
