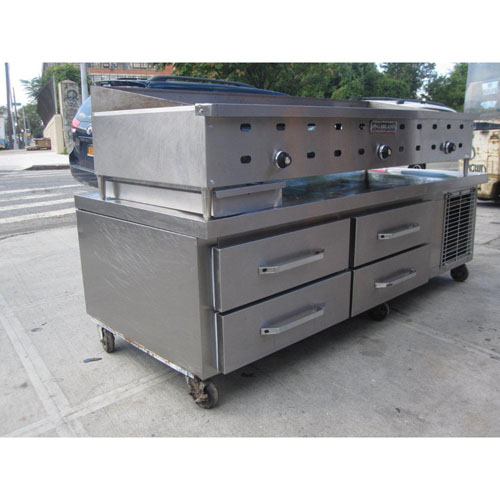

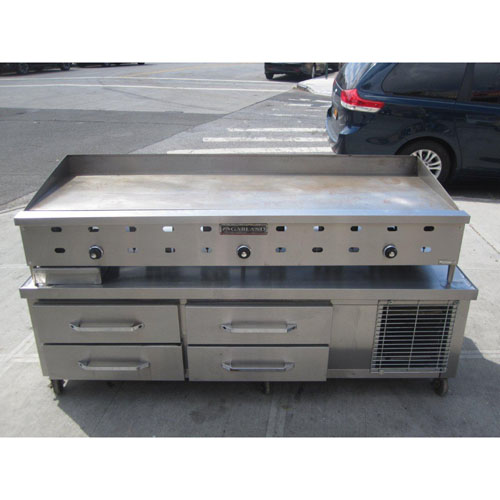

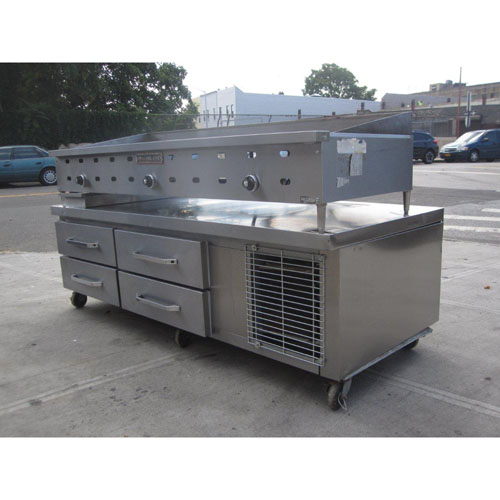

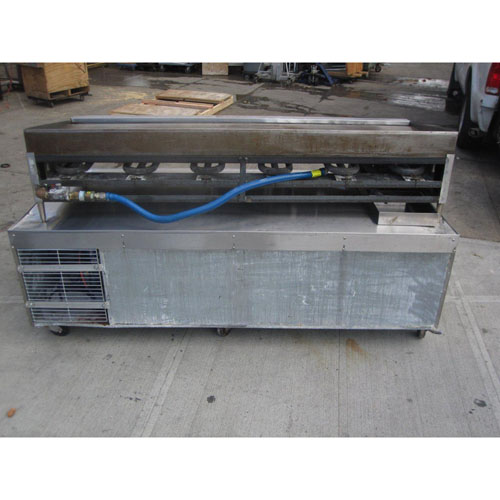

Chef Base The Manufacturer and Model # of this Chef base is unknown to us it could be any of the big manufactures. It has been tested by our Technicians and works perfect Please call Carlos at 718 232 7044 for More Information Griddle Specifications for the Griddle
Model #
?
Volt
110
Serial #
?
Hz
60
Width
76 1/2"
Draw size Exterior
24 3/4" W x 7 1/2"H
Depth
33 1/2"
Height
24 5/8"
Shipping Weight
450 lb
Model #
?
Gas
Natural
Serial #
?
Btu/h
28,000 Each Burner
Total BTu/h
168,000
Width
72"
Depth
27"
Height
13 3/4"
Shipping Weight
810 Lb
Garland heavy duty gas counter production griddles designed for side-by-side
matching with other models in the product line. Models are of nominal imperial
widths from 24" (600mm) to 72"(1800mm), 13" (330mm) height, (w/std. legs), and 32"
(814mm) depth. There is an even heat “U” shaped steel track burner for every 12" of
linear griddle surface width. Each burner is individually controlled with a hi-lo valve or
thermostat temperature control. Burner input is 27,000 BTU/h each on valve-controlled
models, and 28,000 BTU/h each on thermostat controlled models. Thermostat control
models are equipped with on-off valves for each control. Griddle plate is standard 1”
thick polished steel with a 4” wide grease trough. Stainless steel front,sides and back
with large capacity stainless steel grease tray(s).
