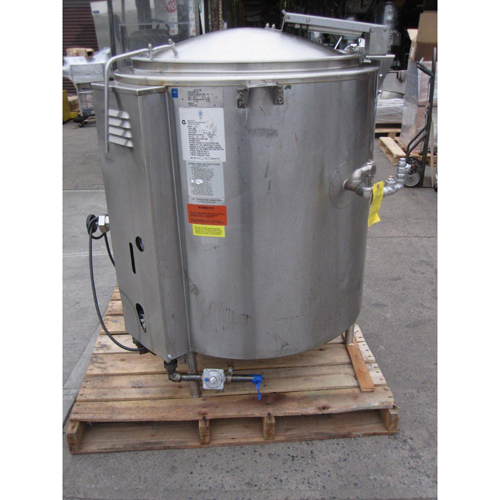

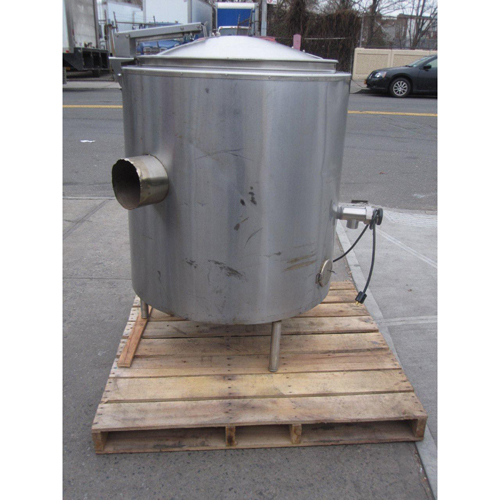

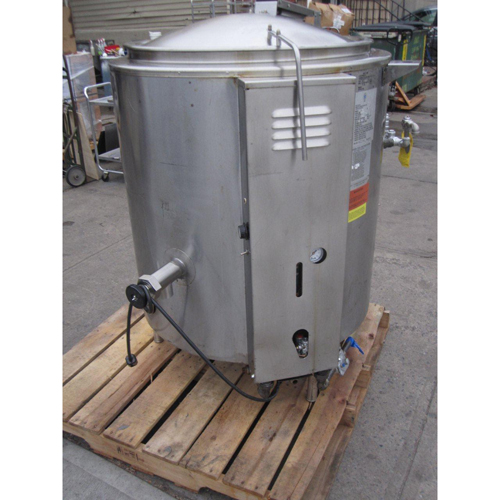

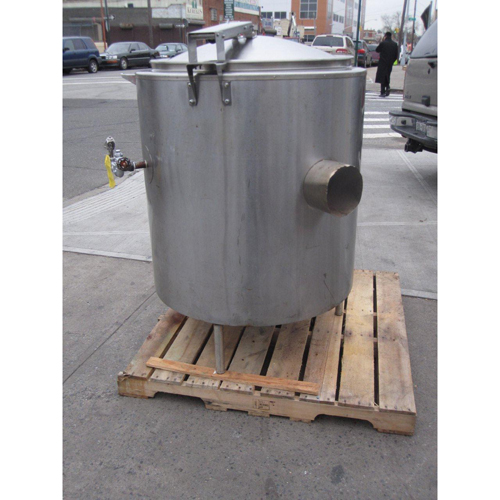

GROEN 60 Gal Commercial Steam Kettle Gas Used Model # AH/1-60 Good Condition

Description

Kettle shall be a Groen Model AH/1 (specify 20, 40, 60,
80 or 100 gallons) stainless steel, self-contained, steam
jacketed kettle operating from gas heated steam source
contained within unit per Bulletin 141047 as follows:

Construction

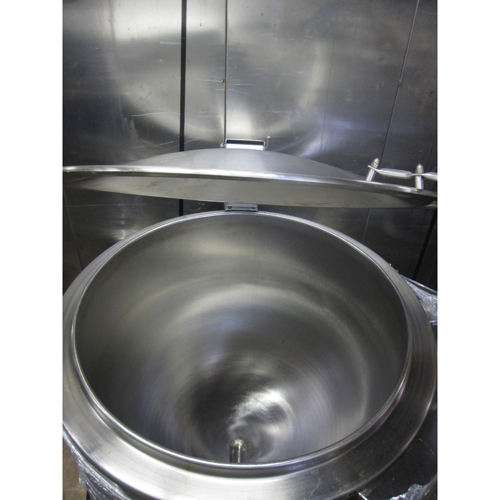

Kettle interior shall be of type 316 stainless steel, with
solid one-piece construction. All exposed surfaces shall
be stainless steel. All controls shall be contained within
front control enclosure.
Kettle body is sheathed in stainless steel and insulated
with fiber bat insulation. Unit provided with three
adjustable legs for leveling. Faucet mounting bracket is standard.

Finish
Interior of kettle shall be polished to a 180 emery grit
finish. Exterior shall be finished to a uniform #3 satin finish
ensuring maximum ease in cleaning and maintaining
appearance.

ASME. Code, CSA (Formerly AGA)
Design Certified, CRN Registered

Unit shall be ASME shop inspected, stamped and registered
with the National Board for operation up to a maximum
working pressure of 30 PSI. Unit shall be Design
Certified by the Canadian Standard Association. Unit shall
be registered in Canada with a CRN number.

Drawoff Valve
Unit shall have a
2" sanitary tangent drawoff which is
made of 316 stainless steel. Valve has durable insulated
handle, rubber compression sealing disk and is easy
to disassemble without tools. The drain outlet shall be
equipped with a removable 1/4  perforated stainless
steel strainer.

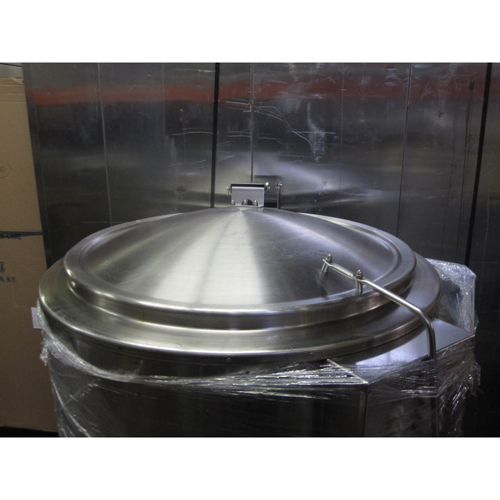

Cover
Cover furnished on 20 gallon units shall be hinged, dome
one-piece unit. Units of 40 to 100 gallon capacity shall be
furnished with No. 51 counterbalanced actuator designed
to maintain the cover in an open or closed position.
