Description

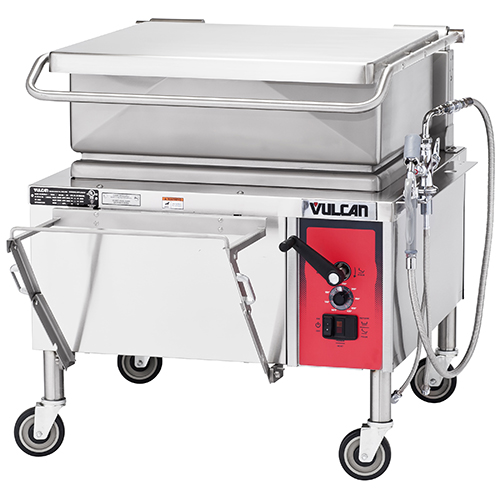

Vulcan VG30 Modular Gas Tilting Braising Pan 30 Gal.
Vulcan's popular V Series braising pans offer more standard features than the competition, including stainless steel, fully-welded one-piece design with coved corners and satin finish (interior and exterior).
- Braising Pan
- Natural gas
- 30-gallon capacity
- 36" wide open base
- Manual tilt
- 9" deep stainless steel pan with gallon markings
- Pouring lip & removable strainer
- Spring assist cover with drip edge
- Pan holder
- Thermostatic control
- Includes L faucet bracket
- Electric ignition
- 12" stainless steel legs with adjustable flanged feet
- 90,000 BTU
- 120v/60/1, 3.0 amps
- 220v/50/60/1 option available please call for details
Specifications
| Dimensions and Weight | |
|---|---|
| Exterior Width | 36" |
| Exterior Depth | 35-1/2" |
| Exterior Height | 40-1/2" |
| Gallon Capacity | 30 |
| Weight | 630 Lbs. |
| Features | |
| Total BTU/HR | 90,000 |
| Base Type | Modular |
| Control | Solid State |
| Finish | Stainless Steel |
| Installation Type | Floor Model |
| Interior Finish | Stainless Steel |
| Maximum Heat Resistance | 425° F |
| Utility | Gas |
| Electrical | |
| Voltage | 120 |
| Amps | 3 |
| Phase | 1 |
| Hertz | 60 |
| Gas Type | Natural Gas |
