Description

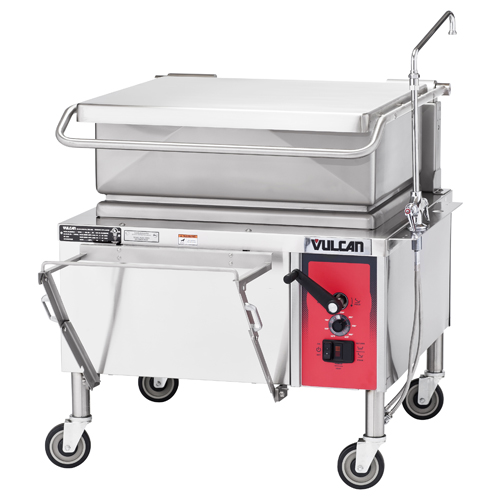

Vulcan VE30 Modular Open Base Electric Tilting Braising Pan 30 Gal.
Vulcan's popular V Series braising pans offer more standard features than the competition, including stainless steel, fully-welded one-piece design with coved corners and satin finish (interior and exterior).
- Braising Pan
- Electric
- 30-gallon capacity
- 36" wide open base
- Manual tilt
- 9" deep stainless steel pan with gallon markings
- Pouring lip & removable strainer
- Pan holder
- Spring assist cover with drip edge
- Water tight solid state controls
- Includes L faucet bracket
- 12" stainless steel legs with adjustable flanged feet
- 208v/60/1ph, 9 kw, 43 amps, direct wire
- Other voltage options available please call for details
Specifications
| Dimensions and Weight | |
|---|---|
| Exterior Width | 36" |
| Exterior Depth | 35-1/2" |
| Exterior Height | 40-1/2" |
| Gallon Capacity | 30 |
| Weight | 600 Lbs. |
| Features | |
| Base Type | Modular |
| Control | Solid State |
| Finish | Stainless Steel |
| Installation Type | Floor Model |
| Interior Finish | Stainless Steel |
| Maximum Heat Resistance | 425° F |
| Utility | Electric |
| Electrical | |
| Plug Type | No plug |
| Voltage | 208 |
| Amps | 43 |
| Phase | 1 |
| Hertz | 60 |
