Description
Description:

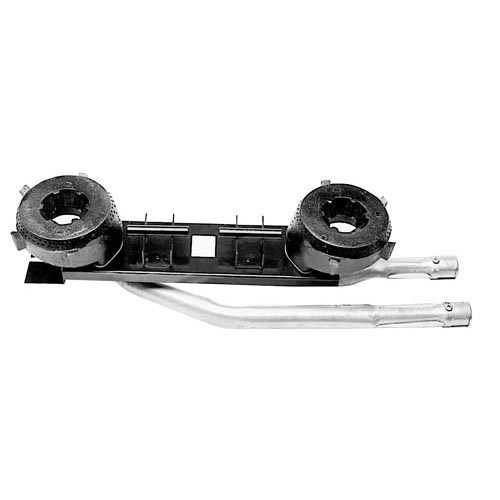

OPEN TOP BURNER ASSY
[ 19.5" ] CI/STEEL, AIR SHUTTER # 26-1863 (2),
BURNER HEAD # 24-1105 (2)
MOUNTING PLATE # 26-3218 (1)
GASKETS # 32-1165 (4)
FRONT VENTURI # 26-3212
NOTE: THE FRONT VENTURI IS 7" LONG FROM
CTR OF HOLES TO END OF AIR SHUTTER.
REAR VENTURI # 26-3213
THE REAR VENTURI IS 15-5/8" LONG FROM
CTR OF HOLES TO END OF AIR SHUTTER.
MOUNTING SCREWS 10-24 X 1/2" (4)
WOLF CH, CHSS
[ 19.5" ] CI/STEEL, AIR SHUTTER # 26-1863 (2),
BURNER HEAD # 24-1105 (2)
MOUNTING PLATE # 26-3218 (1)
GASKETS # 32-1165 (4)
FRONT VENTURI # 26-3212
NOTE: THE FRONT VENTURI IS 7" LONG FROM
CTR OF HOLES TO END OF AIR SHUTTER.
REAR VENTURI # 26-3213
THE REAR VENTURI IS 15-5/8" LONG FROM
CTR OF HOLES TO END OF AIR SHUTTER.
MOUNTING SCREWS 10-24 X 1/2" (4)
WOLF CH, CHSS
Replaces the following Manufacturer's Products
OEM Numbers are used for reference only.
| OEM Names | OEM # |
| VULCAN HART | 00-705480-0000A |
| VULCAN HART | 00-753141-0000A |
| VULCAN HART | 5480-A |
| VULCAN HART | 5480A |
| VULCAN HART | 705480-0000A |
| VULCAN HART | 705480-A |
| VULCAN HART | 753141-0000A |
| VULCAN HART | 753141-A |
Specifications
| Features | |
|---|---|
| Burner Part Type | Burner Assemblies |
