Description
Description:

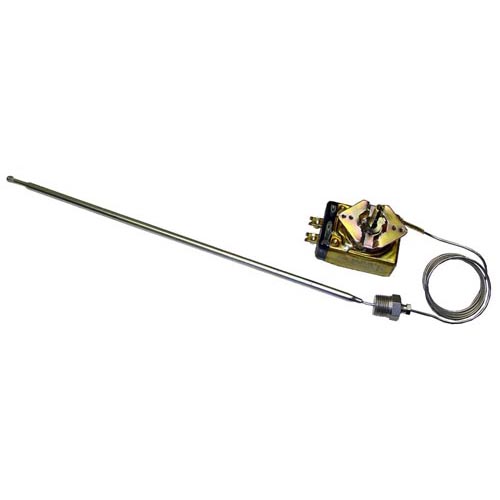

[ TYPE- KX DIP SEALED ] [ TEMP 200-400 ] [ BULB 1/4" X
12-1/8" NICKEL ] [ CAP 48" ] [MOUNT 1 ]
[ 3/8" MPT STUFF BOX ]
DIAL # 22-1191 BLACK T'STAT KNOB W/ WHITE
PRINTED NUMBERS [ 2" DIA ] [ OFF-400-200] [MOUNT .187"]
[FLAT DOWN ]
[GEN USE DIAL # 22-1006 ] BLACK & SILVER
T'STAT KNOB [ 2" DIA ] [ OFF-400-200] [MOUNT .187"]
[POSITION 4 WAY]
VULCAN FRYER 7494E, 7495E, GF91E, GF92E, HF91E & HF92E
(OLD 7891E & 7892E).
CAPILLARY CLAMP: # 26-3078 SNAP-IN,
CAPILLARY CLAMP: # 26-1935 CLIP-ON
BULB CLAMPS, PKG/6, # 26-1542
CALIBRATION SCREW DRIVER # 72-1007
CAPILLARY INSULATION PER FOOT: # 85-1161
ROBERTSHAW ACROFLEX INSULATION SLEEVING
FITS BULBS UP TO 3/8" DIAMETER.
Replaces the following Manufacturer's Products
OEM Numbers are used for reference only.
| OEM Names | OEM # |
| VULCAN HART | 00-411506-00009 |
| VULCAN HART | 00-410687-00001 |
| VULCAN HART | 110687-1 |
| VULCAN HART | 111506-9 |
| VULCAN HART | 410687-00001 |
| VULCAN HART | 410687-1 |
| VULCAN HART | 411506-00009 |
| VULCAN HART | 411506-9 |
Specifications
| Features | |
|---|---|
| Type | KX |
| Bulb | 1/4" x 12 1/8" Nickel |
| Capillary | 48" |
| Stuff Box | 3/8" MPT |
| Temperature Range | 200 - 400° F |
| Electrical | |
| Thermostat Type | Hot Side Electric Thermostat |
