MFR: 00-804746 / 4746 / 770571 / 804746
Description
Description:

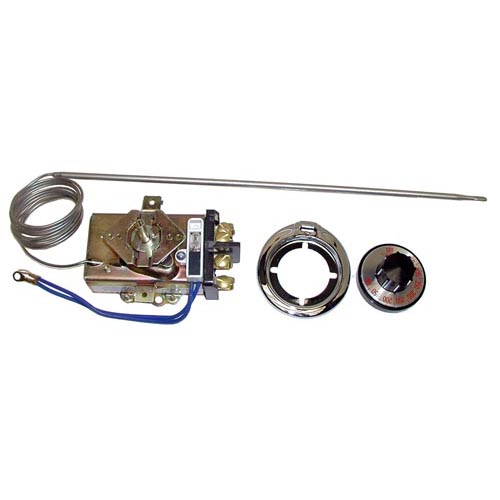

[ TYPE - D1/D18 ] [ TEMP 100-450 ] [ BULB 3/16" X 13"
TIN/ZINC ] [ CAP 60" ] [ MOUNT W/ FRONT EARS ]
4 TERMINAL.
[ PILOT LIGHT, DIAL & BEZEL INCLUDED ]
PILOT LIGHT # 38-1068
DIAL A249, K-115, # 22-1004 OFF-450-100
BEZEL A557, K-160, # 26-4088
VULCAN GRILL SERIES: HEG (ELEC) WITHOUT "D" SUFFIX.
(FOR UNITS WITH "D" SUFFIX USE E-121).
CAPILLARY CLAMP: # 26-3078 SNAP-IN,
CAPILLARY CLAMP: # 26-1935 CLIP-ON
BULB CLAMPS, PKG/6, A1067, W-1130, # 26-1542
CALIBRATION SCREW DRIVER # 72-1007
CAPILLARY INSULATION PER FOOT: L307, Z-127, # 85-1161
ROBERTSHAW ACROFLEX INSULATION SLEEVING
FITS BULBS UP TO 3/8" DIAMETER.
Replaces the following Manufacturer's Products
OEM Numbers are used for reference only.
| OEM Names | OEM # |
| VULCAN HART | 00-804746 |
| VULCAN HART | 4746 |
| VULCAN HART | 770571 |
| VULCAN HART | 804746 |
Specifications
| Features | |
|---|---|
| Type | D1/D18 |
| Bulb | 3/16" x 13" tin / zinc |
| Capillary | 60" |
| Temperature Range | 100-450 |
| Terminal Number | 4 |
| Electrical | |
| Thermostat Type | Hot Side Electric Thermostat |
