Description

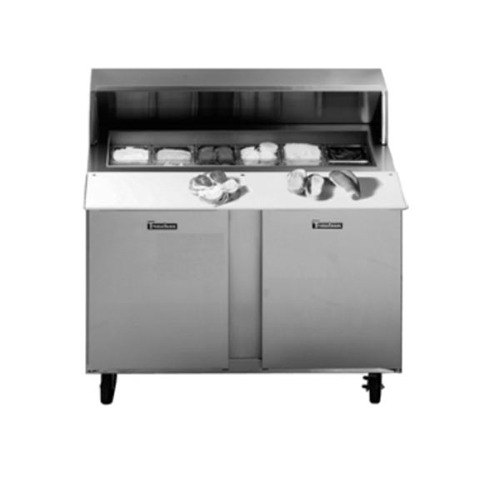

Traulsen UPT7230-LL-SB provides high quality at low price. The unit has reinforced pan ledge, removable pan comer, stainless steel sides, doors and tops and interior door liners made from aluminum. In addition, the interior is also made from aluminum, so it is resistant to corrosion. The thermometer is located inside the unit.
STANDARD FEATURES• High Quality Stainless Steel Exterior Top, Sides & Door(s)
• Durable, Corrosion Resistant Anodized Aluminum Interior
• Provides NSF Standard 7 Performance, Even When Using 6" Deep Pans - A Traulsen Exclusive
• Front Breathing Self-Contained Refrigeration System
• Standard Work Height 36-1/4" (see "optional accessory kits for lower height casters to meet ADA requirements or provide lower work heights)
• Environmentally Friendly R-134a Refrigerant
• Top Cut-Outs Accommodate Sixth Size Pans (divider bars and 4" deep plastic sixth size pans provided)
• Reinforced Pan Ledge (holds pans securely level)
• Removable Stainless Steel Insulated Pan Cover & Pivoting Front Lid
• Reversible, Full Length White Nylon Cutting Board
• Self-Closing Stainless Steel Doors With Convenient Stay Open Feature @ 105 Degrees
• Metal Door Handles
• Anodized Aluminum Interior Door Liners
• Interior Mounted Thermometer
• Two (2) Powder Coated Steel Shelves Per Door, Mounted On Adjustable Pilasters
• Automatic Non-Electric Condensate Evaporator
• Magnetic Snap-In Door Gaskets
• 8' Cord & Plug Attached
• Set of Four (4) 6" High Adjustable Legs (6 for 60" & 72" models)
Specifications
| Dimensions and Weight | |
|---|---|
| Exterior Width | 72" |
| Exterior Depth | 34-1/2" |
| Exterior Height | 46" |
| Capacity | 20 cu. ft. |
| Work Surface Height | 32-3/4" |
| Features | |
| Compressor | Bottom Mounted |
| No. of Shelves | 4 |
| Pan Capacity | 30 |
| Refrigeration Type | Air Cooled |
| Temperature Range | 34 - 38° F |
| Top Type | Mega Top |
| Access | |
| Access Type | Doors |
| No. of Doors | 2 |
| Door Style | Swing |
| Door Type | Solid |
| Electrical | |
| Plug Type | NEMA 5-15P |
| Voltage | 115 |
| Amps | 6.3 |
| Phase | 1 |
| Hertz | 60 |
| Horsepower | 1/4 |
| Certificate Label | |
| NSF Listed | Yes |
| UL Listed | Yes |
