Description
Description:

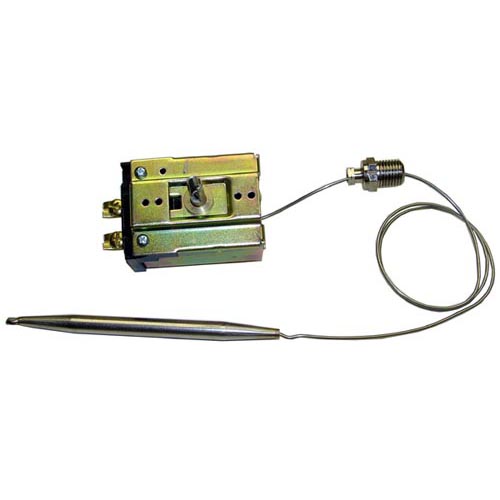

THERMOSTAT, WAS ROBERTSHAW RX, NOW SUNNE,
T'STAT TYPE - TC125 ] [ TEMP 200-400 F] [ BULB 5/16" X 5"]
[CAP 24" ] [ 1/4" MPT STUFF BOX ][ VERT MOUNT ]
[ .187" D-STEM FLAT UP ]
[ DIAL A3290, K-362, # 22-1339 ] BLACK T'STAT KNOB W/ WHITE
NUMBERS [ 2-1/4" DIA ][ OFF 400-200] [MOUNT .187"][FLAT UP]
SOUTHBEND FRYER GFS 35,45,65, 4FR-45
CAPILLARY CLAMP: # 26-3078 SNAP-IN,
CAPILLARY CLAMP: # 26-1935 CLIP-ON
BULB CLAMPS, PKG/6, A1067, W-1130, # 26-1542
CALIBRATION SCREW DRIVER # 72-1007
CAPILLARY INSULATION PER FOOT: L307, Z-127, # 85-1161
ROBERTSHAW ACROFLEX INSULATION SLEEVING
FITS BULBS UP TO 3/8" DIAMETER.
Replaces the following Manufacturer's Products
OEM Numbers are used for reference only.
| OEM Names | OEM # |
| SOUTHBEND | 1182151 |
| STAR MFG | 2T-1182151 |
| BLODGETT | Z1182151 |
| MIDDLEBY MARSHALL | 1182151 |
| TOASTMASTER | 2T-1182151 |
Specifications
| Features | |
|---|---|
| Type | TC125 |
| Bulb | 5/16" x 5" |
| Capillary | 24" |
| Stuff Box | 1/4" MPT |
| Temperature Range | 200 - 400° F |
| Electrical | |
| Thermostat Type | Hot Side Electric Thermostat |
