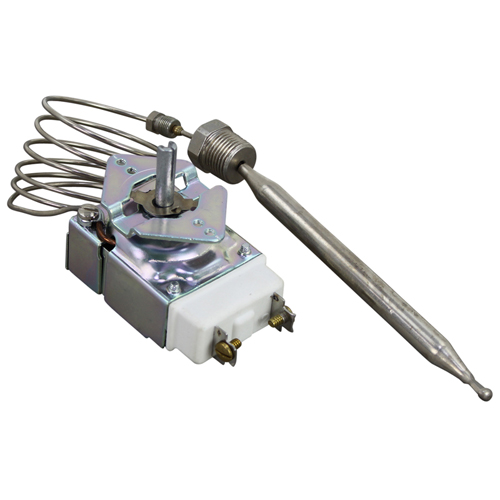

Description
Description:
[ TYPE - RX ] [ TEMP 200-375 ] [ BULB 3/8" X 5-3/4" ]
CAP 36" ][ 3/8" MPT STUFF BOX][ MOUNT 11 ]
CECILWARE DIAL # 22-1192 RED T'STAT KNOB,
[ 2-1/4" DIA ] [ - 375-225 ] [MOUNT .187" ] [FLAT UP]
[GEN USE DIAL # 221006 ] BLACK & SILVER T'STAT
KNOB [ 2" DIA ] [ OFF-400-200] [MOUNT .187"] [ 4 WAY]
CECILWARE FRYER
EFP(30,40,65), EFS(30,40,65).
FMP(30,40,40B,40BSS,65,403),
FMS(30,40,54,65).
** FOR OLD KX SYTLE SEE G711, E-268, # 461332
STAR 404D, 615FD, 630FD
CAPILLARY CLAMP: # 26-3078 SNAP-IN,
CAPILLARY CLAMP: # 26-1935 CLIP-ON
BULB CLAMPS, PKG/6, # 26-1542
CALIBRATION SCREW DRIVER # 72-1007
CAPILLARY INSULATION PER FOOT: # 85-1161
ROBERTSHAW ACROFLEX INSULATION SLEEVING
FITS BULBS UP TO 3/8" DIAMETER.
Replaces the following Manufacturer's Products
OEM Numbers are used for reference only.
| OEM Names | OEM # |
| CECILWARE | L345A |
| STAR MFG | 2T-Z6007 |
| CECILWARE | L345AL |
| GRINDMASTER | L345A |
| GRINDMASTER | L345AL |
Specifications
| Features | |
|---|---|
| Type | RX |
| Bulb | 3/8" x 5 5/8" |
| Capillary | 36" |
| Stuff Box | 3/8" MPT |
| Temperature Range | 200 - 375° F |
| Electrical | |
| Thermostat Type | Hot Side Electric Thermostat |
