Description
Description:

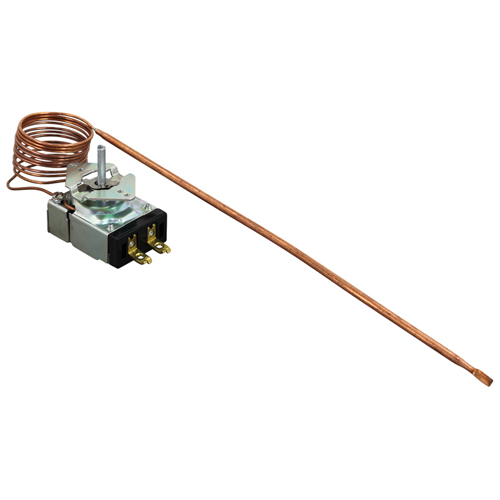

[ TYPE- KX ] [ TEMP 175-550 ] [ BULB 3/16" X 11-5/8" ]
[ CAP 60" ] [ MOUNT 1 ] .187" D-STEM FLAT DOWN,
[ DIAL USE # 22-1007 OFF-550-200 4-WAY BLK/SILVER &
[BEZEL # 26-1227]
[VUL DIAL # 22-1270 OFF-550-200 BLACK FLAT DOWN ]
[VUL RED DIAL # 22-1441 OFF-550-200 FLAT
UP ( NEED TO TURN T'STAT 180 DEGREES)]
BAKERS PRIDE OVEN X300
VULCAN GRILL 77 (OLDER ELECTRIC RANGE), VS, VTM.
OVEN 141, 241, RGT-10.
SERIES: ET, GH, GHM, SG, VS, VTM, VC4GS VC6GS,
VC4ES, VC6ES.
WOLF CONVECTION OVEN WKGD
CAPILLARY CLAMP: # 26-3078 SNAP-IN,
CAPILLARY CLAMP: # 26-1935 CLIP-ON
BULB CLAMPS, PKG/6, # 26-1542
CALIBRATION SCREW DRIVER # 72-1007
CAPILLARY INSULATION PER FOOT: # 85-1161
ROBERTSHAW ACROFLEX INSULATION SLEEVING
FITS BULBS UP TO 3/8" DIAMETER.
Replaces the following Manufacturer's Products
OEM Numbers are used for reference only.
| OEM Names | OEM # |
| GARLAND | CK227155 |
| GARLAND | 227155 |
| HOBART | 00-347961-00001 |
| HOBART | 347961-1 |
Specifications
| Features | |
|---|---|
| Type | KX |
| Bulb | 3/16" x 11 5/8" |
| Capillary | 60" |
| Temperature Range | 175 - 550° F |
| Electrical | |
| Thermostat Type | Hot Side Electric Thermostat |
