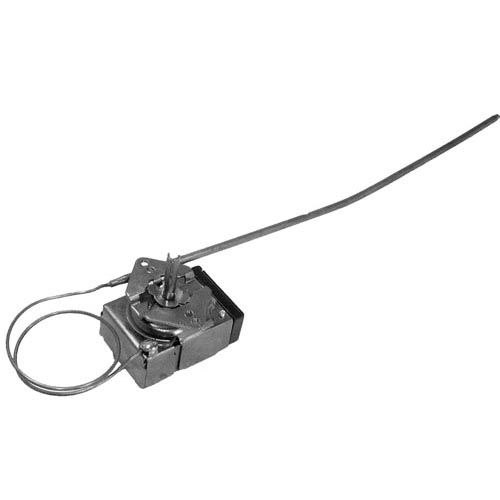

Description
Description:
[ TYPE - KX ] [ TEMP 140-425 ]
[ BULB 3/16" X 11-5/8" BLACKENED ]
[ CAP 12" ] MOUNT 3 HORIZONTAL
FOR DIAL USE:
[ DIAL # 22-1284, OFF-450-100, UP/DN ] OR
DIAL # 22-1004, 2" DIA, OFF-450-100, 4-WAY ]
GE/HOBART OVEN
CN90C, CN92D, CN95.
CAPILLARY CLAMP: # 26-3078 SNAP-IN,
CAPILLARY CLAMP: # 26-1935 CLIP-ON
CALIBRATION SCREW DRIVER # 72-1007
Replaces the following Manufacturer's Products
OEM Numbers are used for reference only.
| OEM Names | OEM # |
| VULCAN HART | 00-345517-00001 |
| GE/HOBART | XNC8X113/345517-1 |
| HOBART | 00-345517-00001 |
| HOBART | 345517-1 |
| VULCAN HART | 345517-1 |
Specifications
| Features | |
|---|---|
| Type | KX |
| Bulb | 3/16" x 11 5/8" |
| Capillary | 12" |
| Temperature Range | 140 - 425° F |
| Electrical | |
| Thermostat Type | Hot Side Electric Thermostat |
