Description
Description:

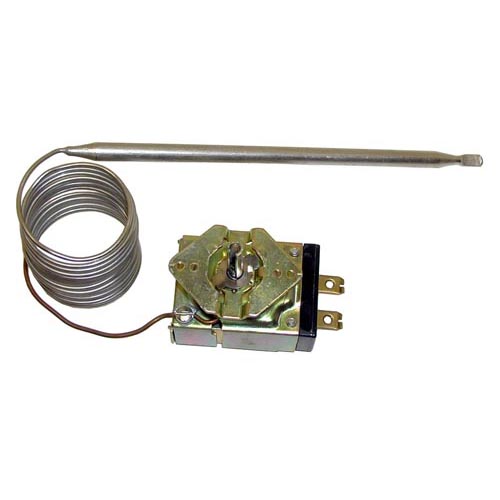

[ TYPE - K ] [ TEMP 200-400 ][ BULB 5/16" X 8-1/16"
NICKEL ] [ CAP 96" ] [ MOUNT 1 ]
DIAL # 22-1353, INDICATOR KNOB, 1-1/4" DIA, FLAT UP LEFT.
DIAL # 22-1191, BLACK T'STAT KNOB W/ WHITE PRINTED NUMBERS
[ 2" DIA ] [ OFF-400-200] [MOUNT .187"] [FLAT DOWN ].
DIAL # 22-1006, [ 2" DIA ] [ OFF-400-200]
[MOUNT .187"] [POSITION 4 WAY]
GARLAND
FRYER
36ES-(11,11BL,11BLSF,11SF), 36FS-21, 680-(31F,31FBL),
780-(31F,31SFBL), E22-(14F,28FT), E24-(31F,31SF).
VULCAN FRYER
VF, VMF, VTMF.
WELBILT MODEL ?
CAPILLARY CLAMP: # 26-3078 SNAP-IN,
CAPILLARY CLAMP: # 26-1935 CLIP-ON
BULB CLAMPS, PKG/6, # 26-1542
CALIBRATION SCREW DRIVER # 72-1007
CAPILLARY INSULATION PER FOOT: # 85-1161
ROBERTSHAW ACROFLEX INSULATION SLEEVING
FITS BULBS UP TO 3/8" DIAMETER.
Replaces the following Manufacturer's Products
OEM Numbers are used for reference only.
| OEM Names | OEM # |
| VULCAN HART | 00-414880-00001 |
| VULCAN HART | 114880-1 |
| VULCAN HART | 24145-20 |
| VULCAN HART | 414880-00001 |
| VULCAN HART | 414880-1 |
| WELBILT | B-2081 |
Specifications
| Features | |
|---|---|
| Type | K |
| Bulb | 5/16" x 8 1/16" nickel |
| Capillary | 96" |
| Temperature Range | 200 - 400° F |
| Electrical | |
| Thermostat Type | Hot Side Electric Thermostat |
