Description
Description:

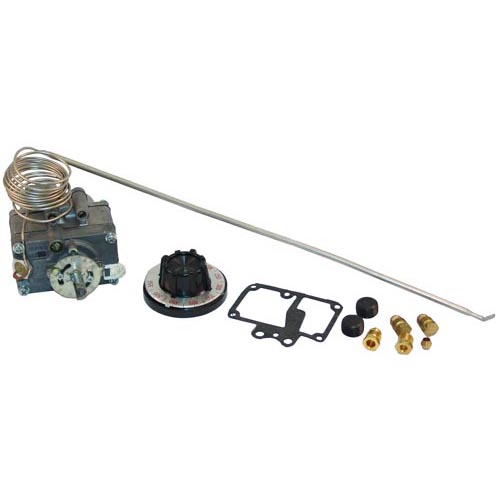

GAS THERMOSTAT,
[ FDTO-1 ] [ TEMP LOW-550 ] [ BULB 3/16" X 14-3/4" ]
[ CAP 54" ] [ 3/8" FPT: IN (SIDE & REAR )F & H,
OUT (SIDE & REAR ) E & G ] .290" D-STEM,
INCLUDES [ DIAL # 22-1010 LOW-550 ]
KIT INCLUDES: 3/16" CCT TUBE ADAPTERS, 1/4" TUBE PLUGS,
3/8" MPT PIPE PLUGS, DIAL AND GASKET.
VULCAN/WOLF OVEN F & FS.
[ DIAL # 22-1010 LOW-550 ][ FDTO-1 ] [ TEMP LOW-550 ] [ BULB 3/16" X 14-3/4" ]
[ CAP 54" ] [ 3/8" FPT: IN (SIDE & REAR )F & H,
OUT (SIDE & REAR ) E & G ] .290" D-STEM,
INCLUDES [ DIAL # 22-1010 LOW-550 ]
KIT INCLUDES: 3/16" CCT TUBE ADAPTERS, 1/4" TUBE PLUGS,
3/8" MPT PIPE PLUGS, DIAL AND GASKET.
VULCAN/WOLF OVEN F & FS.
CAPILLARY CLAMP: # 26-3078 SNAP-IN,
CAPILLARY CLAMP: # 26-1935 CLIP-ON
BULB CLAMPS, PKG/6, # 26-1542
CAPILLARY INSULATION PER FOOT: # 85-1161
ROBERTSHAW ACROFLEX INSULATION SLEEVING
FITS BULBS UP TO 3/8" DIAMETER.
Replaces the following Manufacturer's Products
OEM Numbers are used for reference only.
|
OEM Names |
OEM # |
| VULCAN HART | 00-715048 |
| VULCAN HART | 00-719313 |
| ANETS | 8900-28 |
| ANETS | K4990-00 |
| ANETS | P8900-43 |
| ANETS | P8905-19 |
| VULCAN HART | 15048 |
| VULCAN HART | 19313 |
| VULCAN HART | 715048 |
| VULCAN HART | 719313 |
Specifications
| Features | |
|---|---|
| Capillary | 54" |
| Electrical | |
| Thermostat Type | Hot Side Gas Thermostat |
