Description
Description:

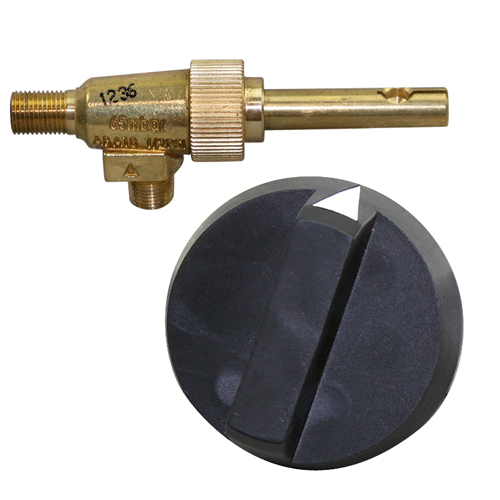

OEM CHANGED TO NEW STYLE. VALVE W/KNOB.
BURNER VALVE, [ 1/8" MPT X 3/8"-27 ]
[ ROTATION OFF/ON ] [STEM FLAT UP] NO ORIFICE,
[STEM SIZE .240" ] [CTR INLET TO END OF STEM 2-7/16" ]
STEM 1-15/32" LONG, [ ANGLE - 90]
SOUTHBEND RANGE
SERIES: 300.
OLD STYLE VALVE WAS SHORTER AND OFF-HIGH-LOW.
SEE FOLLOWING: OLD STYLE NAT/LP, # 52-1080 WITH KNOB.
BURNER VALVE, [ 1/8" MPT X 3/8"-27 ] PUSH TO TURN,
[ ROTATION OFF/HIGH/LOW ] #57 [STEM FLAT UP]
[STEM SIZE .240" ] [CTR INLET TO END OF STEM 1-13/16" ]
STEM 1-1/8" LONG, [ ANGLE - 90]
SOLID STATE POCKET GAS DETECTOR # 85-1101BURNER VALVE, [ 1/8" MPT X 3/8"-27 ]
[ ROTATION OFF/ON ] [STEM FLAT UP] NO ORIFICE,
[STEM SIZE .240" ] [CTR INLET TO END OF STEM 2-7/16" ]
STEM 1-15/32" LONG, [ ANGLE - 90]
SOUTHBEND RANGE
SERIES: 300.
OLD STYLE VALVE WAS SHORTER AND OFF-HIGH-LOW.
SEE FOLLOWING: OLD STYLE NAT/LP, # 52-1080 WITH KNOB.
BURNER VALVE, [ 1/8" MPT X 3/8"-27 ] PUSH TO TURN,
[ ROTATION OFF/HIGH/LOW ] #57 [STEM FLAT UP]
[STEM SIZE .240" ] [CTR INLET TO END OF STEM 1-13/16" ]
STEM 1-1/8" LONG, [ ANGLE - 90]
TEFLON THREAD SEALING TAPE, # 85-1109 (1/2" X 520")
TEFLON SEALING "PINK" H/D TAPE # 85-1130 (1/2" X 260")
"GRIPP" HEAVT DUTY THREAD SEALER 1/2 PINT , # 85-1101
PTFE HEAVY DUTY THREAD SEALER 1/4 PINT # 85-1136
Replaces the following Manufacturer's Products
OEM Numbers are used for reference only.
OEM Names |
OEM # |
SOUTHBEND | 4440708 |
SOUTHBEND | 1164404N |
SOUTHBEND | 1176000 |
SOUTHBEND | 1176001 |
SOUTHBEND | 4440397 |
SOUTHBEND | 4440398 |
