Description

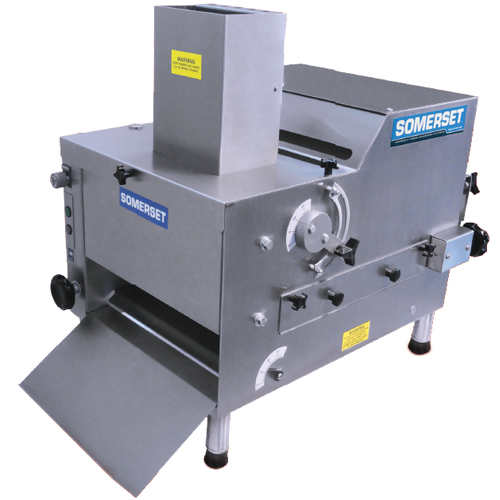

Somerset CDR-170: Compact Tabletop Bread Molder with Interchangeable Pressure Plate from 6” to 15”
- Perfect for breads, challah, hot dog buns, specialty breads, dinner rolls, bolillos, Cuban bread, sub rolls, breadsticks, pretzels, baguettes
- Makes 30 pieces per minute, up to 15”
- Synthetic rollers

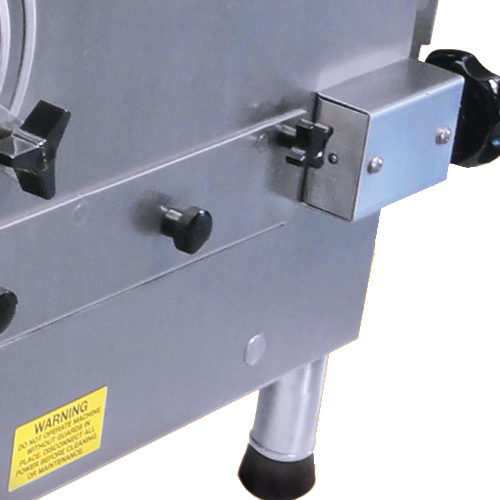

- Safety sensors for automatic shutoff
- Compact design, ideal for use in limited space
- Sanitary, heavy duty, all stainless steel welded construction
- Spring loaded scrapers readily removable for easy cleaning

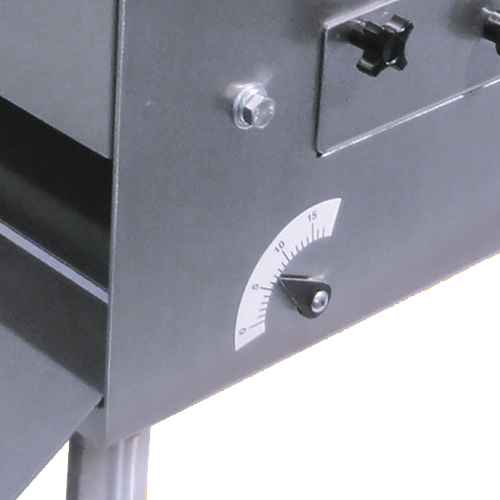

- Simple handle adjustment for uniform products
- Maintenance-free drive mechanism, isolated from the roller area
- Easy to operate, easy to clean
- Special pressure plates available to increase machine’s versatility
- Easily removable conveyor belt for cleaning and service
Rollers: 3.5” dia. by 15” length (8.89 cm dia. by 38.10 cm length)
Scrapers: Synthetic, spring loaded, removable
Bearings: Sealed ball bearings, permanently lubricated
Gear Motor: Heavy duty 1/2 HP, maintenance free, single phase, 115v/60Hz
Conveyor length: 50” (127cm)
Conveyor Belt: 14” (35.50cm)
Pressure Plate: 14” x 24” (35.50cm x 61cm)
Finishing: All stainless steel
Shipping Weight: 220 lbs (100kgs)
Please contact our Equipment department if you are interested in the 220v / 50Hz somerset.
Specifications
| Dimensions and Weight | |
|---|---|
| Exterior Width | 26-7/8" |
| Exterior Height | 28-1/8" |
| Conveyor Belt Width | 14" |
| Exterior Length | 19-1/4" |
| Roller Length | 15" |
| Sheet Size | 15" |
| Weight | 220 Lbs. |
| Working Length | 50" |
| Features | |
| Finish | Stainless Steel |
| Roller Gap | 3.5" |
| Sheets per hour | 1800 pcs 500-600 pcs |
| Electrical | |
| Voltage | 115 |
| Phase | 1 |
| Hertz | 60 |
| Horsepower | 1/2 |
