MFR: R30T
Description

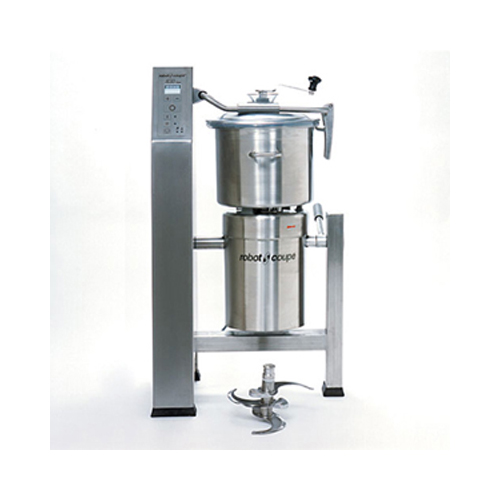

30 quart bowl unit designed for vertical cutting and mixing: mix, chop, puree, blend, mix and knead doughs.
- Power: 7 HP—Three phase.
- 2 speed: 1800/3600 rpm.
- All stainless steel construction
- IP65 control panel equipped with a digital 0–15 minute timer.
- Induction motor. Magnetic safety system and motor brake.
- Delivered with:
- 31 Qt. all stainless steel cutter bowl with handle and see-thru lid. Cutter Bowl tilts and is removable for easy cleaning.
- 3 stainless steel smooth edge “S” blade assembly.
- Dimensions (H×L×W): 48 1/16" × 23 5/8" × 27 3/8"
- Approx. shipping weight: 253 lbs
- Approx. carton size: 55" × 27 1/2" × 31 1/4" Cube 27.35
- ETL Electrical and Sanitation listed/CETL (Canada).
- Optional BLIXER parts available including:
- Bowl scraper assembly.
- 2 blade stainless steel BLIXER assembly.
- NEMA# L15-30P
Options for the R30 T
| Ref No. | Description |
| 117950 | Smooth edge blade only |
| 118240 | Fine serrated edge blade only |
| 118286 | Coarse serrated edge blade only |
| 57074 | 3 smooth edge straight blade assembly |
| 57075 | 3 blade coarse serrated edge blade assembly |
| 57077 | 3 fine serrated blade knife assembly |
| 59126 | Complete lid assembly with seal |
| 59132 | Stainless steel cutter bowl only |
Specifications
| Dimensions and Weight | |
|---|---|
| Exterior Width | 27.325" |
| Exterior Depth | 23-5/8" |
| Exterior Height | 48-1/16" |
| Bowl Capacity | 31 qt. |
| Features | |
| Type | Batch Bowl Processor |
| No. of Discs / Blades Included | 1 |
| Speed Controls | 2 |
| Electrical | |
| Power Type | Electric |
| Voltage | 208-240 |
| Amps | 40 |
| Phase | 3 |
| Hertz | 60 |
| RPM | 3600 |
| Horsepower | 7 |
