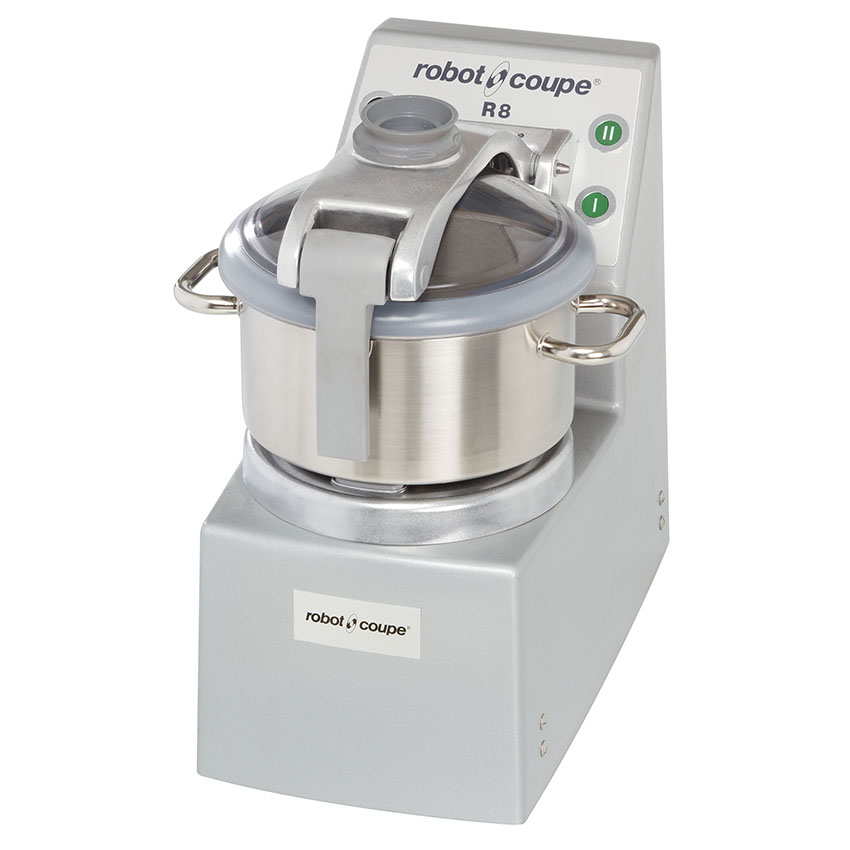

Description
Bowl designed for vertical cutting and mixing in 8 quart quantities: puree, mix, chop, blend, mix and knead dough.
- Power: 3 HP–Three phase.
- 2 speed: 1725/3450 rpm.
- On/off and pulse switch.
- Induction motor. Magnetic safety system and motor brake.
- Delivered with:
- 8 Qt. stainless steel cutter bowl with handle and see-thru lid.
- 2 stainless steel smooth edge “S” blades.
- Dimensions (H×L×W): 21 3/16" × 22 1/16" × 15 11/16"
- Approx. shipping weight: 110 lbs
- Approx. carton size: 30" × 27" × 19" Cube 8.90
- ETL Electrical and Sanitation listed.
- Minimum Branch Circuit Protection Required: 20 AMP
- NEMA# L15-20P
Options for the R8
Ref No. | Description |
R199 | Robo-Cart |
R8U017 | 2 Blade Stainless Steel Smooth Edge “S” Blade Assembly |
R8U023 | Lid Assembly with seal |
R8U024 | 8 Qt. Stainless Steel Bowl Only |
R8U065 | 3.5 Qt. Stainless Steel Mini Bowl |
R8U066 | 2 Blade Stainless Steel Smooth Edge “S” Blade Assembly for Mini Bowl |
R8U071 | Machine Stand: (HxLxW) 25 1/4" x 33 1/4" x 21 3/16" |
R8U090 | 3.5 Qt. Stainless Steel Mini Bowl with complete Stainless Steel Smooth “S” blade assembly |
Specifications
Dimensions and Weight | |
---|---|
Exterior Width | 12-3/8" |
Exterior Depth | 21-7/16" |
Exterior Height | 23" |
Bowl Capacity | 8 qt. |
Features | |
Type | Batch Bowl Processor |
No. of Discs / Blades Included | 2 |
Speed Controls | 2 |
Electrical | |
Power Type | Electric |
Voltage | 208-240 |
Amps | 9.9 |
Phase | 3 |
Hertz | 60 |
RPM | 3600 |
Horsepower | 3 |
