Description:

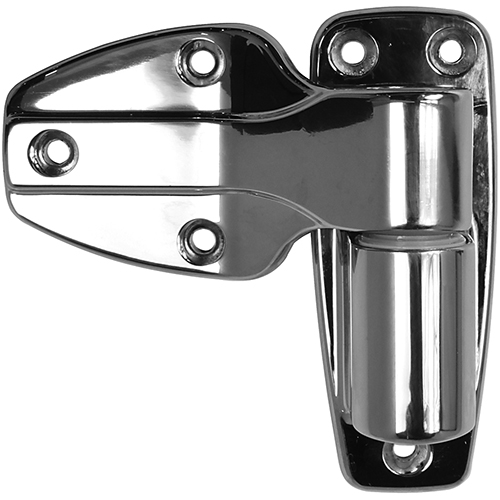

REVERSIBLE CAM RISE LIFT OFF HINGE, 5-9/16" LONG OD.
DOOR STRAP 4-1/2" OUTSIDE EDGE TO CENTERLINE OF PIVOT.
STRAP HAS A PLASTIC CAM RISE STEM IN IT WHICH GOES INTO THE
FLANGE., NUMBER "1246" IS CAST ON STRAP & FLANGE.
FLUSH OFFSET, 3 HOLE MOUNT.
TO REVERSE REMOVE CAP AND PUSH OUT CAM, REPLACE CAM
ON OTHER SIDE OF STRAP AND REPLACE CAP.
DOOR HINGE, SHORT STRAP, 3 HOLE MOUNT
FRAME MOUNT 5-1/2"OD WIDE, 3 HOLE
FOR REPLACEMENT CAM KIT ORDER #28-2410
1246
NORLAKE KL
DOOR STRAP 4-1/2" OUTSIDE EDGE TO CENTERLINE OF PIVOT.
STRAP HAS A PLASTIC CAM RISE STEM IN IT WHICH GOES INTO THE
FLANGE., NUMBER "1246" IS CAST ON STRAP & FLANGE.
FLUSH OFFSET, 3 HOLE MOUNT.
TO REVERSE REMOVE CAP AND PUSH OUT CAM, REPLACE CAM
ON OTHER SIDE OF STRAP AND REPLACE CAP.
DOOR HINGE, SHORT STRAP, 3 HOLE MOUNT
FRAME MOUNT 5-1/2"OD WIDE, 3 HOLE
FOR REPLACEMENT CAM KIT ORDER #28-2410
1246
NORLAKE KL
KASON® 1246 Series Reversible Cam-Rise Hinges
1-Year Manufacturer's Warranty
Warranty
Reg. US Pat & TM Off.
Replaces the following Manufacturer's Products
OEM Numbers are used for reference only.
OEM Names | OEM # |
Nor-Lake | 083478 |
Specifications
Features | |
---|---|
Hardware Type | Hinge Kits |
Offset | Flush |
