Description
Description:

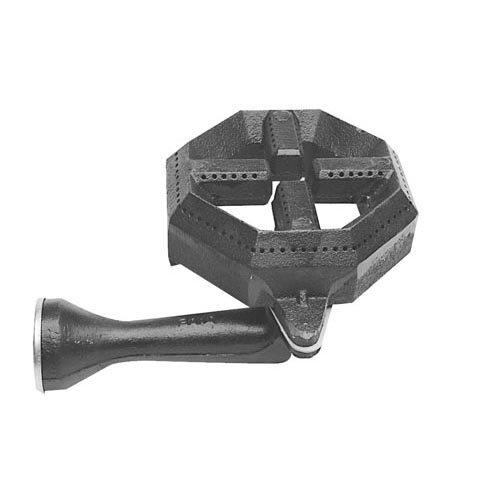

CAST IRON OPEN TOP BURNER ASSY
[ 9-1/4" ] AIR SHUTTER - A1188, # 26-1569
2-1/2" CTR MT, HEAD LEFT, GASKET B643, Z-078, # 32-1312
6" LONG VENTURI FROM AIR SHUTTER TO MTG BOLTS
OCTAGON FLAT SIDE TO FLAT SIDE 5-15/16", BTTM RAISED SLOT.
BURNER HEAD # 24-1116
VENTURI # 24-1201
JADE GRILL SERIES: JGM, JGT.
HOTPLATE SERIES: JHP, JHPE (UNITS W/TWO BURNERS ACROSS).
RANGE
JSRE 3-336 (FRONT & REAR), JSRE 3-436 (FRONT),
JSRE 4-336 (REAR). SERIES: JSR, JTRH.
*JHPE UNITS W/THREE BURNERS ACROSS USE OEM # 119-136-140.
[ 9-1/4" ] AIR SHUTTER - A1188, # 26-1569
2-1/2" CTR MT, HEAD LEFT, GASKET B643, Z-078, # 32-1312
6" LONG VENTURI FROM AIR SHUTTER TO MTG BOLTS
OCTAGON FLAT SIDE TO FLAT SIDE 5-15/16", BTTM RAISED SLOT.
BURNER HEAD # 24-1116
VENTURI # 24-1201
JADE GRILL SERIES: JGM, JGT.
HOTPLATE SERIES: JHP, JHPE (UNITS W/TWO BURNERS ACROSS).
RANGE
JSRE 3-336 (FRONT & REAR), JSRE 3-436 (FRONT),
JSRE 4-336 (REAR). SERIES: JSR, JTRH.
*JHPE UNITS W/THREE BURNERS ACROSS USE OEM # 119-136-140.
Replaces the following Manufacturer's Products
OEM Numbers are used for reference only.
OEM Names | OEM # |
JADE RANGE | 8492300000 |
JADE RANGE | 8492900000 |
JADE RANGE | 119-135-140 |
JADE RANGE | 119135140 |
Specifications
Features | |
---|---|
Burner Part Type | Burner Assemblies |
