Description
Description:

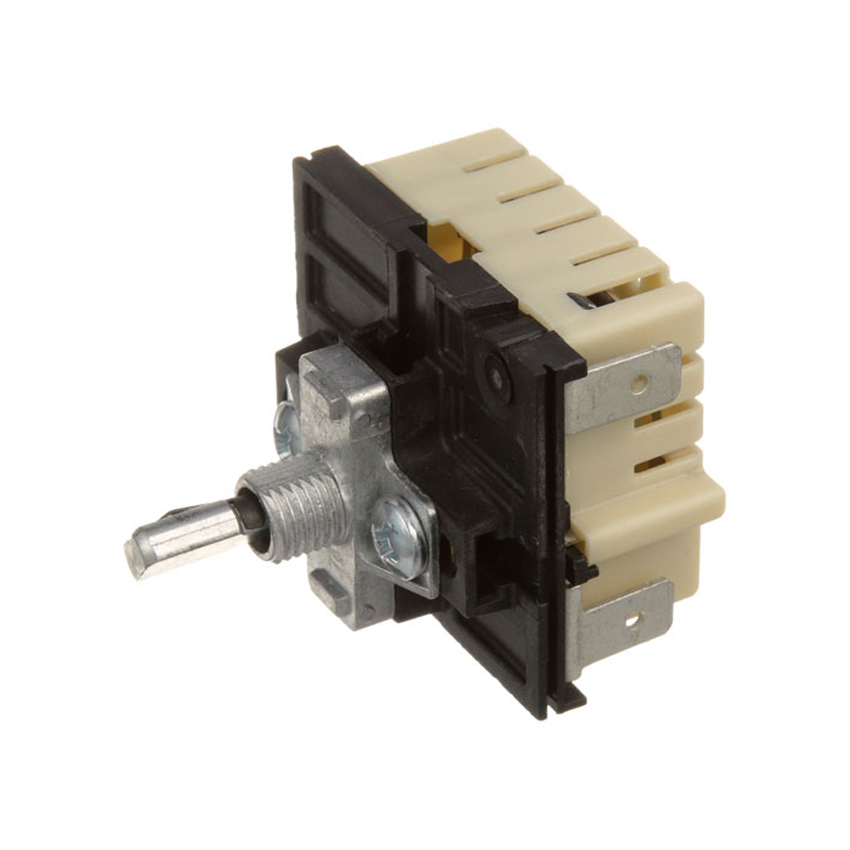

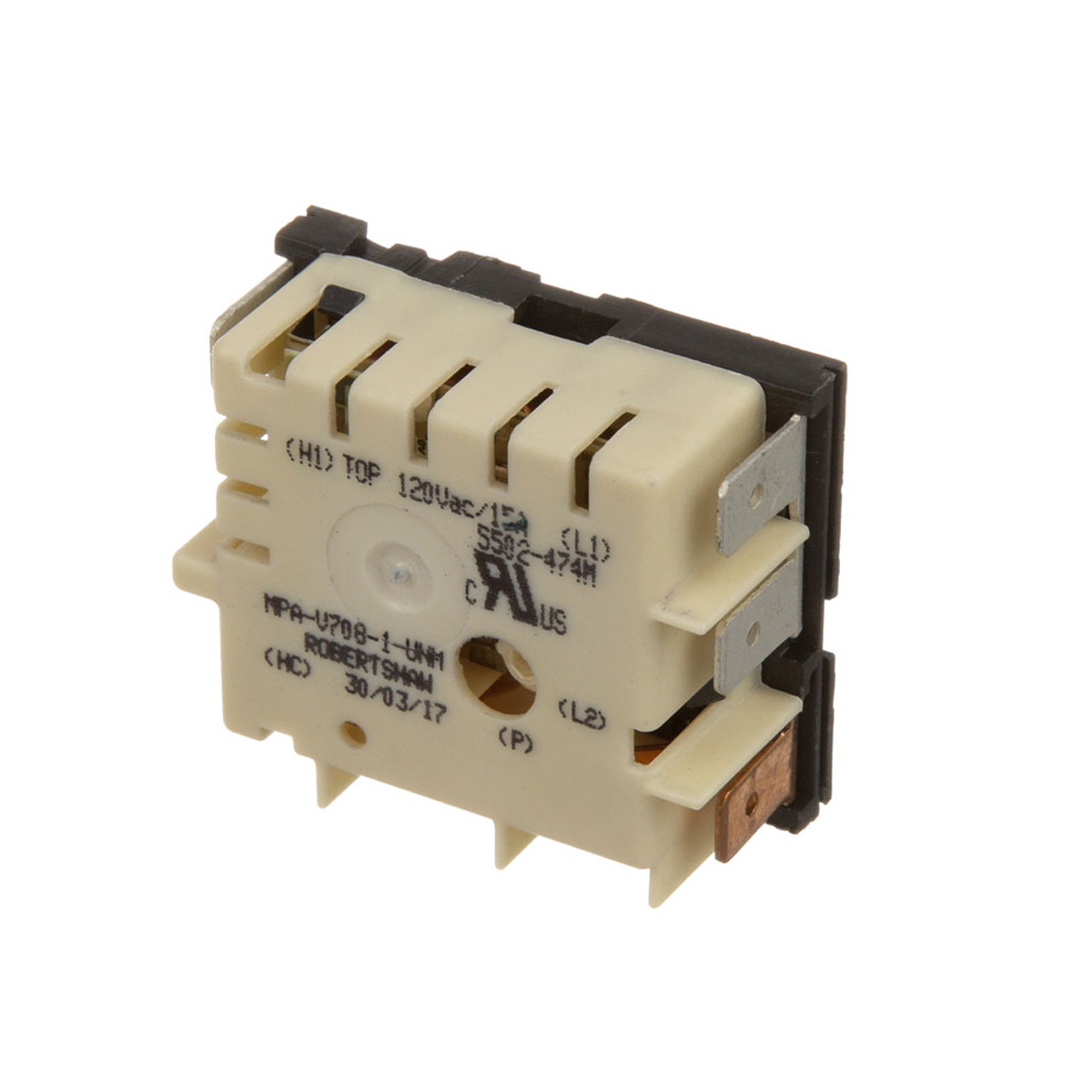

VERTICLE PALNUT MOUNT, 22-1/2 % AT LOW SETTING
120V/15A )( INFINITE ), TERMINAL( 5; 1/4" TAB;
L1,L2(LINE),P(PILOT),H1,H2(LOAD) ); CONTACTS( N.O. )' (
ROTARY )( 1-10 ); SHAFT( 1/4" OD; 3/4" LG;.187" FLAT DOWN )
VULCAN DIAL, OFF, VERY LOW, MEDIUM LOW, LOW, MEDIUM,
HIGH, A2719, # 22-1268
GEN USE BLACK KNOB # 22-1349
2" DIA, OFF-LO-2-6-HI, UNIVERSAL MOUNT, W/ 5 INSERTS
VULCAN HART
OVEN
SERIES: ET & SG WHERE APPLICABLE.
VULCAN DIAL, OFF, VERY LOW, MEDIUM LOW, LOW, MEDIUM,120V/15A )( INFINITE ), TERMINAL( 5; 1/4" TAB;
L1,L2(LINE),P(PILOT),H1,H2(LOAD) ); CONTACTS( N.O. )' (
ROTARY )( 1-10 ); SHAFT( 1/4" OD; 3/4" LG;.187" FLAT DOWN )
VULCAN DIAL, OFF, VERY LOW, MEDIUM LOW, LOW, MEDIUM,
HIGH, A2719, # 22-1268
GEN USE BLACK KNOB # 22-1349
2" DIA, OFF-LO-2-6-HI, UNIVERSAL MOUNT, W/ 5 INSERTS
VULCAN HART
OVEN
SERIES: ET & SG WHERE APPLICABLE.
HIGH, # 22-1268
GEN USE BLACK KNOB # 22-1349
2" DIA, OFF-LO-2-6-HI, UNIVERSAL MOUNT, W/ 5 INSERTS
UNIVERSAL ELECTRIC KNOB KIT, # 22-1576
INCLUDES: 5 KNOBS, 10 INLAYS, AND 25 STEM INSERTS;
(5 EA. BLUE, GREEN, GRAY, RED, YELLOW).
USED WITH INFINTE SWITCHES AND ELECTRIC THERMOSTATS
WHITE INFINITE SWITCH KNOB K-141, # 221527
2" DIA, OFF-LO-2-6-HI, UNIVERSAL MOUNT, W/ 5 INSERTS
PALNUT FOR THREAD STEM SWITCHES, 3/8-24, # 26-3886
HEX NUT FOR THREAD STEM SWITCHES, 3/8-24, # 26-1355
Replaces the following Manufacturer's Products
OEM Numbers are used for reference only.
|
OEM Names |
OEM # |
| VULCAN HART | 00-411503-000G1 |
| HOBART | 00-411503-00001 |
| HOBART | 00-411503-000G1 |
| HOBART | 111503-1 |
| HOBART | 411503-00001 |
| HOBART | 411503-000G1 |
| HOBART | 411503-1 |
| HOBART | 411503-G1 |
| HOBART | 411503G1 |
| VULCAN HART | 00-411503-00001 |
| VULCAN HART | 111503-1 |
| VULCAN HART | 411503-00001 |
| VULCAN HART | 411503-000G1 |
| VULCAN HART | 411503-1 |
| VULCAN HART | 411503-G1 |
| VULCAN HART | 411503G1 |
Specifications
| Features | |
|---|---|
| Type | Infinite Switches |
