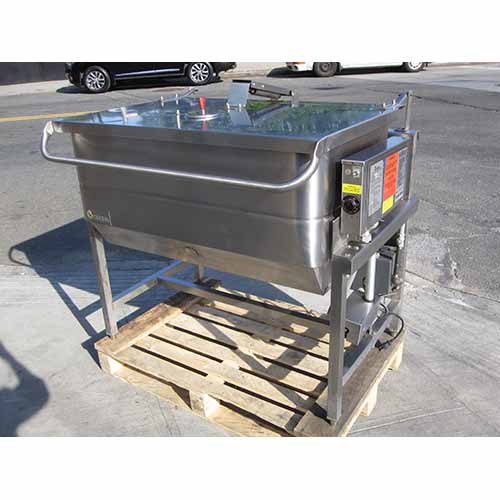

Groen NHFP and NHFP(E) Gas Fired Braising Pans provide a stainless steel pan equipped with
heat transfer fins, burner/combustion chamber, power tilting mechanism, thermostatic controls,
and hinged cover. The Braising Pan serves as a braising unit, griddle, fry pan, oven, kettle, bain
marie, or food warmer and server. It can also be adapted for use as a steamer.

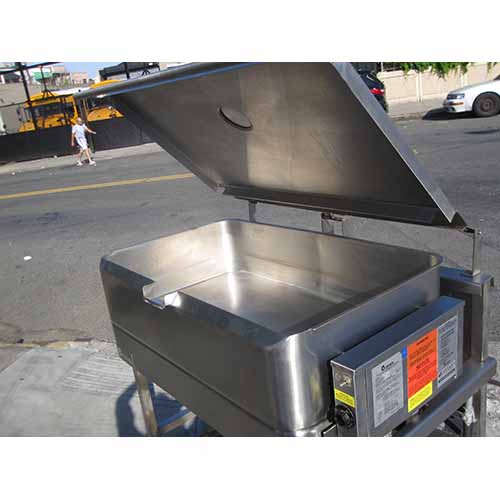

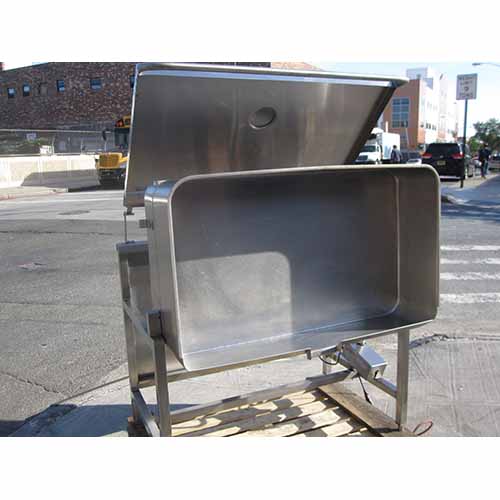

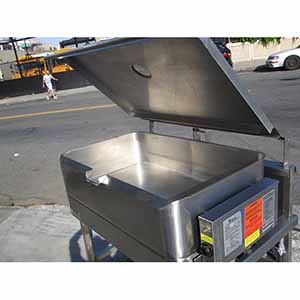

The pan body is constructed of heavy-duty stainless steel welded into one solid piece, with a
polished interior and a semi-deluxe finish on the exterior. A pouring lip is welded into the front
wall. The cooking surface is a stainless steel clad plate fitted with welded heat transfer fins

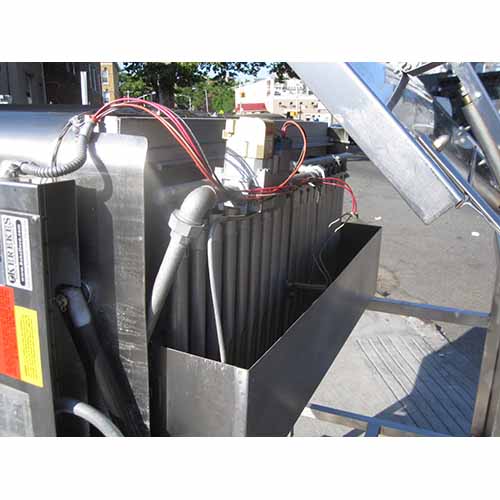

that assure uniform heat transfer over the entire surface. The gas burner/combustion chamber
supplies the heat.
The pan is tilted forward by an electrically powered actuator mechanism. A three-position
switch on the front of the control console gives the operator positive, smoothly operating control
of tilting. When the pan is tilted, the burners shut off automatically

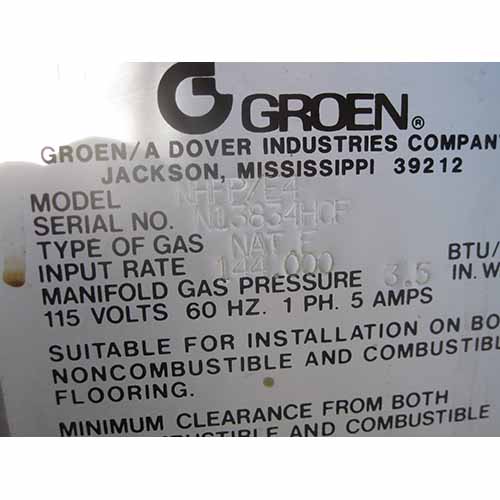

Specs
| Model | NHFP/E4 |
| Serial # | N13834HCF |
| Gas | NAT E |
| Input Rate | 144,000 |
| Gas Pressure | 3.5 |
| Amps | 5 |
| Volts | 115 |
| HZ | 60 |
| Phase | 1 |
| capacity | 40 GAL |
| Height | 40" |
| Depth | 36" |
| Weight | 400 Lbs |
Warehouse Tag # K-2250
