Groen NHFP and NHFP(E) Gas Fired Braising Pans provide a stainless steel pan equipped with
heat transfer fins, burner/combustion chamber, power tilting mechanism, thermostatic controls,
and hinged cover. The Braising Pan serves as a braising unit, griddle, fry pan, oven, kettle, bain
marie, or food warmer and server. It can also be adapted for use as a steamer.
The pan body is constructed of heavy-duty stainless steel welded into one solid piece, with a
polished interior and a semi-deluxe finish on the exterior. A pouring lip is welded into the front
wall. The cooking surface is a stainless steel clad plate fitted with welded heat transfer fins

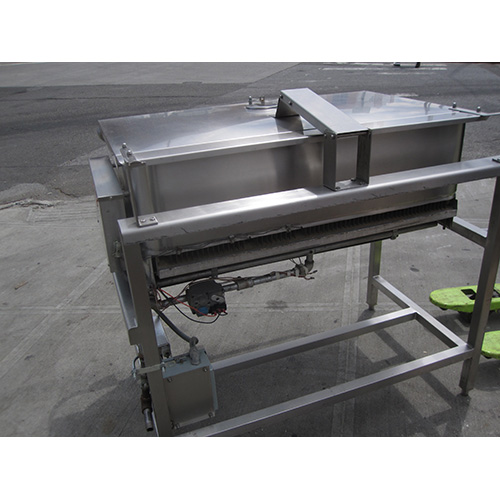

that assure uniform heat transfer over the entire surface. The gas burner/combustion chamber
supplies the heat.
The pan is tilted forward by an electrically powered actuator mechanism. A three-position
switch on the front of the control console gives the operator positive, smoothly operating control
of tilting. When the pan is tilted, the burners shut off automatically
Specs

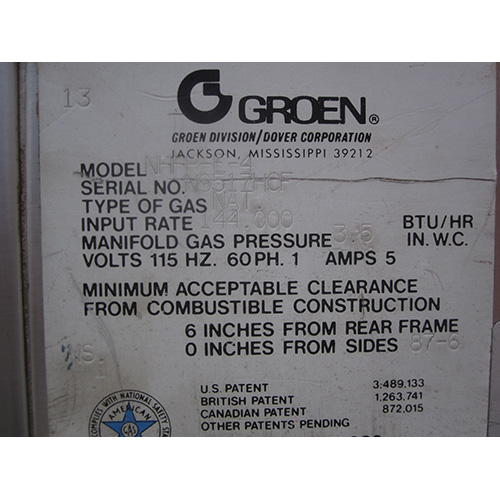

Model
NHFP-E-4
Serial #
N9517HCF
Gas
NAT
Input Rate
144,000
Gas Pressure
3.5
Amps
5
Volts
115
HZ
60
Phase
1
capacity
40 GAL
Height
40"
Depth
36"
Weight
400 Lbs
Warehouse Tag # K-2180
