Description
Description:

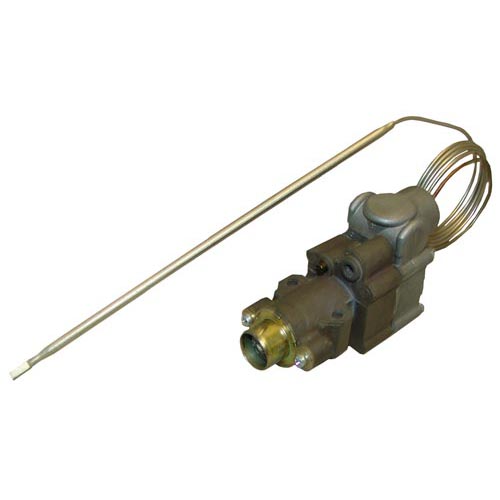

VIEWED FROM REAR: SEE "BJ OUTLET POSITIONS"
W/ BY-PASS ADJ AT TOP & GAS INLET DOWN
[ TYPE - BJWA ] [ TEMP 100-450 F] [ BULB 3/16" X 9" ]
[CAP 36" ] [ OUT 3/8" FPT "C" REAR ],
[ROTATION 180 BODY UP], [ NARROW FLANGE BODY ]
[ DIAL TO USE # 22-1036 OFF-LO-150-400-HI]
GARLAND GRILL 48/40 (AFTER 1983).
SERIES: G280 AFTER 08/90, H280, P280.
US RANGE GRILL
SERIES: PX.
SOLID STATE POCKET GAS DETECTOR # 85-1101W/ BY-PASS ADJ AT TOP & GAS INLET DOWN
[ TYPE - BJWA ] [ TEMP 100-450 F] [ BULB 3/16" X 9" ]
[CAP 36" ] [ OUT 3/8" FPT "C" REAR ],
[ROTATION 180 BODY UP], [ NARROW FLANGE BODY ]
[ DIAL TO USE # 22-1036 OFF-LO-150-400-HI]
GARLAND GRILL 48/40 (AFTER 1983).
SERIES: G280 AFTER 08/90, H280, P280.
US RANGE GRILL
SERIES: PX.
TEFLON THREAD SEALING TAPE # 85-1109
"GRIPP" HEAVT DUTY THREAD SEALER 1/2 PINT # 85-1101
PTFE HEAVY DUTY THREAD SEALER 1/4 PINT , # 85-1136
Replaces the following Manufacturer's Products
OEM Numbers are used for reference only.
OEM Names |
OEM # |
GARLAND | 1360200 |
Specifications
Features | |
---|---|
Capillary | 36" |
Temperature Range | 100-450 |
Electrical | |
Thermostat Type | Hot Side Gas Thermostat |
