MFR: 155828 / 153036 / 153036SED

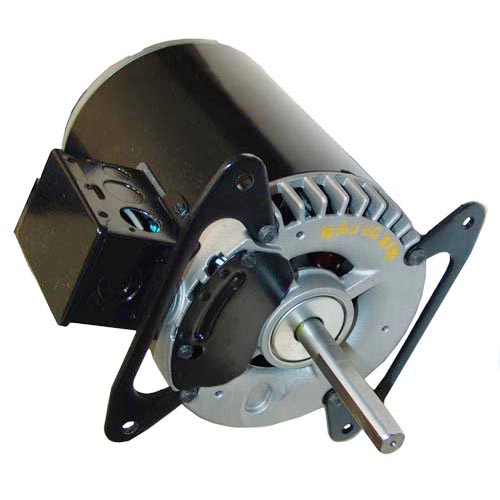

Description
Description:
[ 200-240V, ] [ 1/2-1/4 HP,][ 50/60 HZ ] [1Ph ] 2 SPEED.
[1725/1140 RPM ] [3.5-4.0/1.5-1.8 A ] [CW/REVERSIBLE
ROTATION ] [3-1/2" X 5/8" SHAFT W/ 2 FLATS ]
IF USING AN EMERSON MOTOR ON A GARLAND OVEN, THE TWO
GRAY WIRES MAY NOT BE NEEDED. CAP THEM INDIVIDUALLY WITH
WIRE NUTS. GROUND WIRE TO MOTOR CASE MAY NEED TO BE
ADDED.
FOR GARLAND OEM MOTOR 168702 USE #68-1259
BLOWER WHEEL 9-7/8" DIA X 2-1/2" DEEP X 5/8" BORE # 26-1328
OR GEN USE BLOWER WHEEL 10" DIA. X 2" DEEP X 5/8" BORE,
# 26-4052
DUKE OVEN SERIES: E
WHEEL PULLER # 72-1104[1725/1140 RPM ] [3.5-4.0/1.5-1.8 A ] [CW/REVERSIBLE
ROTATION ] [3-1/2" X 5/8" SHAFT W/ 2 FLATS ]
IF USING AN EMERSON MOTOR ON A GARLAND OVEN, THE TWO
GRAY WIRES MAY NOT BE NEEDED. CAP THEM INDIVIDUALLY WITH
WIRE NUTS. GROUND WIRE TO MOTOR CASE MAY NEED TO BE
ADDED.
FOR GARLAND OEM MOTOR 168702 USE #68-1259
BLOWER WHEEL 9-7/8" DIA X 2-1/2" DEEP X 5/8" BORE # 26-1328
OR GEN USE BLOWER WHEEL 10" DIA. X 2" DEEP X 5/8" BORE,
# 26-4052
DUKE OVEN SERIES: E
Replaces the following Manufacturer's Products
OEM Numbers are used for reference only.
| OEM Names | OEM # |
| DUKE | 155828 |
| DUKE | 153036 |
| DUKE | 153036SED |
Specifications
| Features | |
|---|---|
| Style | Blower Motors |
