Description
Description:

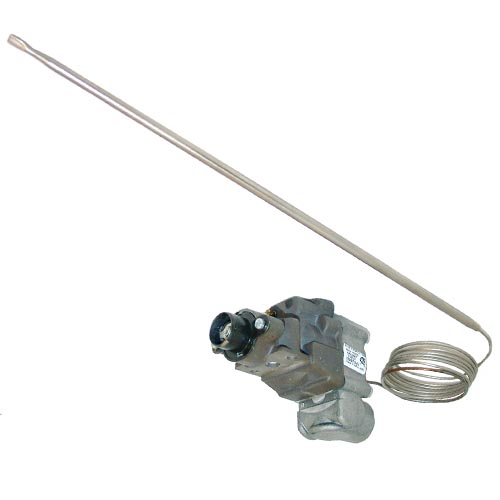

VIEWED FROM REAR: SEE "BJ OUTLET POSITIONS"
W/ BY-PASS ADJ AT TOP & GAS INLET DOWN
[ BJWA T'STAT 1/4" NPT ] [ TEMP LOW-500 ]
[ BULB 3/16" X 11-3/16" ] [ CAP 48" ] [ OUT "C" REAR,
[ ROTATION 0 DEGREES BODY DOWN ]
DCS KNOB # 22-1163 [ 2" DIA ] [ OFF-LOW-250-500] [MOUNT
11/16"][NOTCH DOWN], 1-3/16" PROTRUSION
DYNAMIC COOKING SYSTEMS
OVEN
RANGE - OVEN SECTION.
SOLID STATE POCKET GAS DETECTOR # 85-1101W/ BY-PASS ADJ AT TOP & GAS INLET DOWN
[ BJWA T'STAT 1/4" NPT ] [ TEMP LOW-500 ]
[ BULB 3/16" X 11-3/16" ] [ CAP 48" ] [ OUT "C" REAR,
[ ROTATION 0 DEGREES BODY DOWN ]
DCS KNOB # 22-1163 [ 2" DIA ] [ OFF-LOW-250-500] [MOUNT
11/16"][NOTCH DOWN], 1-3/16" PROTRUSION
DYNAMIC COOKING SYSTEMS
OVEN
RANGE - OVEN SECTION.
TEFLON THREAD SEALING TAPE # 85-1109
"GRIPP" HEAVT DUTY THREAD SEALER 1/2 PINT # 85-1101
PTFE HEAVY DUTY THREAD SEALER 1/4 PINT , # 85-1136.
Replaces the following Manufacturer's Products
OEM Numbers are used for reference only.
|
OEM Names |
OEM # |
| DCS (Dynamic Cooking Systems) | 13031 |
| DCS (Dynamic Cooking Systems) | 55763-01 |
| DCS (Dynamic Cooking Systems) | 55763-02 |
| DCS (Dynamic Cooking Systems) | 55763-1 |
| DCS (Dynamic Cooking Systems) | 55763-2 |
| DCS (Dynamic Cooking Systems) | 55764-01 |
| DCS (Dynamic Cooking Systems) | 55764-02 |
| DCS (Dynamic Cooking Systems) | 55764-1 |
| DCS (Dynamic Cooking Systems) | 55764-2 |
Specifications
| Features | |
|---|---|
| Capillary | 48" |
| Temperature Range | 500° F |
| Electrical | |
| Thermostat Type | Hot Side Gas Thermostat |
