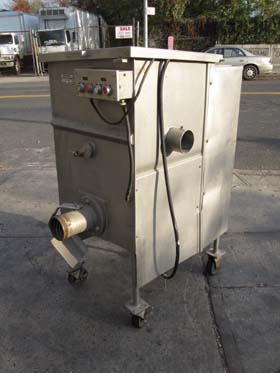

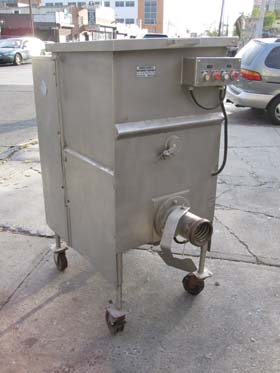

Biro Mixer Grinder Model # AFMG 48 Used Good Condition
- Used
- Good Condition
- Works Perfect
- Well Maintained
| Model # | AFMG-48 | Volt | 220 |
| Serial # | 50175 | Phase | 3 |
| Width | 27 5/8" | Amps | |
| Depth | 43 1/4" | Hp | 7.5 |
| Height | 54 1/4" | Shipping Weight Approx | 830 Lb |
ELECTRICAL Auger: 7.5 hp (5.6 kW) optional 10 hp (7.5 kW)
Mixer: 1.75 hp, (1.3 kW)
POWER CORD 12’ 10-4 cord with plug 7 1/2 hp U.S., 12’ 10-4 cord no plug 7 1/2 hp International.
12’ 8-4 cord with plug 10 hp U.S., 12’ 8-4 cord no plug 10 hp International.
ELECTRICAL Totally enclosed auger motor, watertight magnetic switch system with thermal COMPONENTS overload protection.
CONSTRUCTION Heavy duty stainless steel 200 lb. (91kg) capacity hopper, frame, and legs. Hot tin dipped
bowl, ring, and auger. Stainless steel bowl, ring, and auger (Enterprise or Unger system are available at extra cost).
DRIVE SYSTEM Auger: Single reduction (35 pitch - 4 row) roller chain drive with tapered roller bearings
Mixer: Heavy duty combination gear motor.
CAPACITY Hopper: 200 lbs. (91 kg)
GRINDING Output - up to 65 lbs. (30 kg) per minute CAPACITY
SAFETY Magnetic safety interlock on hopper lid
STANDARD 35 degree right hand inlet, Stainless Steel 2nd grind paddle with center arm (stainless steel
FEATURES first grind paddle available no charge if specified), casters, spurt guard, front, left or right side
opening lid, tub with no side inlet call factory.
CERTIFICATIONS USDA, UL, NSF, CSA
WEIGHT 720 pounds (327 kg) net
830 pounds (376 kg) gross
 |
 |
 |
 |
 |
For More information Please call 718 232 7044
|
Warehouse Tag # K-957
