Description
Description:
VIEWED FROM REAR:SEE ADDL IMAGE "OUTLET POSITIONS"

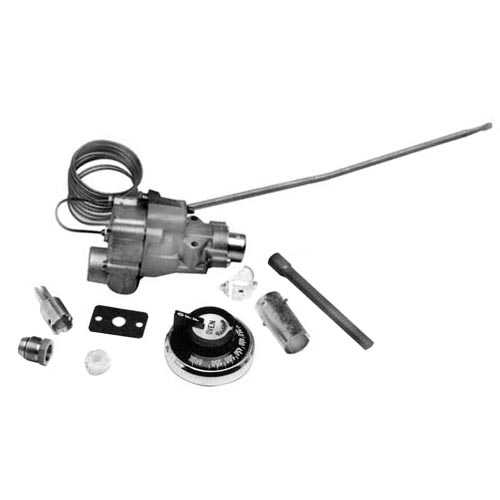

[ BJWA KIT ] [ TEMP 250-550 ] [ BULB 3/16 X 11-5/8 ]
[ CAP 72 ] [ OUT 7/16 CCT "C" REAR ][ ROTATION 0 DEGREES ]
[ WIDE FLANGE ] [ INCLUDES DIAL & BEZEL, STEM.
PILOT 3/16" CCT W/PLUG.
ADAPTERS, GASKET, SCREWS ]
DIAL W/ ADAPTER = # 22-1028 OFF-LOW-250-550-BROIL
FOR GARLAND RED DIAL USE # 22-1272 OFF-LOW-250-500
7/16" ALUMINUM TUBING 50 FT. ROLL # 26-1422[ BJWA KIT ] [ TEMP 250-550 ] [ BULB 3/16 X 11-5/8 ]
[ CAP 72 ] [ OUT 7/16 CCT "C" REAR ][ ROTATION 0 DEGREES ]
[ WIDE FLANGE ] [ INCLUDES DIAL & BEZEL, STEM.
PILOT 3/16" CCT W/PLUG.
ADAPTERS, GASKET, SCREWS ]
DIAL W/ ADAPTER = # 22-1028 OFF-LOW-250-550-BROIL
FOR GARLAND RED DIAL USE # 22-1272 OFF-LOW-250-500
"RIGID" TUBE CUTTER 1/8 TO 5/8 , # 72-1147
TUBE BENDER 3/16 TO 3/8, # 72-1106
Specifications
| Features | |
|---|---|
| Bulb | 3/16" x 11 5/8" |
| Capillary | 72" |
| Temperature Range | 250 - 550° F |
| Electrical | |
| Thermostat Type | Hot Side Gas Thermostat |
