Description
Description:

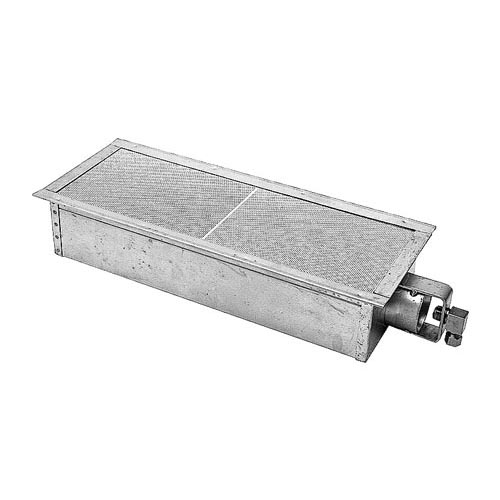

INFRARED BURNER,
[ 18-1/2" X 6-3/4" OD ( LESS ORIFICE ) ] STEEL
[ ORIFICE - #46 W/ THD BRACKET ] 185,000 BTU
TOP OF BOX 16-3/4" X 6-3/4"
CERAMIC BURN AREA 15-1/4" X 5-1/4",
BOX ONLY 15-5/8" X 5-3/4"
GARLAND
RANKIN-DELUX BROILER RDCM 15, RDGM CHEESEMELTER.
VULCAN BROILER ICM
US RANGE CHEESEMELTER IRCMA 24,48,72,96,120,144
THIS BURNER CAN SUBSTITUTE FOR JADE BURNER # 26-3690
BUT IS NOT EXACT.
[ 18-1/2" X 6-3/4" OD ( LESS ORIFICE ) ] STEEL
[ ORIFICE - #46 W/ THD BRACKET ] 185,000 BTU
TOP OF BOX 16-3/4" X 6-3/4"
CERAMIC BURN AREA 15-1/4" X 5-1/4",
BOX ONLY 15-5/8" X 5-3/4"
GARLAND
RANKIN-DELUX BROILER RDCM 15, RDGM CHEESEMELTER.
VULCAN BROILER ICM
US RANGE CHEESEMELTER IRCMA 24,48,72,96,120,144
THIS BURNER CAN SUBSTITUTE FOR JADE BURNER # 26-3690
BUT IS NOT EXACT.
Replaces the following Manufacturer's Products
OEM Numbers are used for reference only.
OEM Names | OEM # |
GARLAND | 222105-2 |
RANKIN DELUX | RDCM-08 |
VULCAN HART | 00-844516-00016 |
GARLAND | 222105-1 |
VULCAN HART | 844516-00016 |
VULCAN HART | 844516-16 |
Specifications
Features | |
---|---|
Type | Burners and Burner Parts |
